Understanding Toluene: Chemical Properties and Why It Works

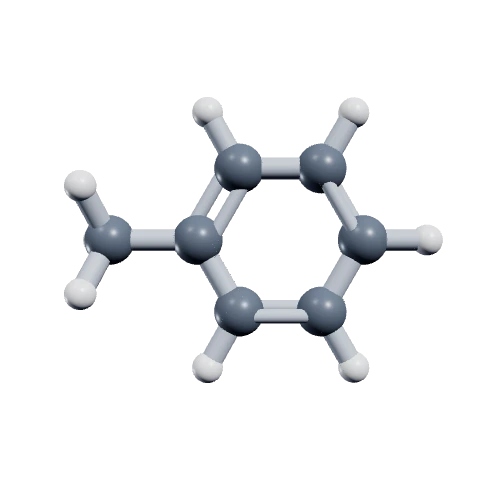

Toluene (C&sub7;H&sub8;, CAS 108-88-3) is a monosubstituted aromatic hydrocarbon consisting of a benzene ring with a single methyl group. Also known as methylbenzene or phenylmethane, it is one of the most versatile and widely used industrial solvents in the coatings, adhesives, and chemical manufacturing industries. Global toluene production exceeds 30 million metric tons annually, with approximately 15% consumed as a solvent.

What makes toluene exceptional as a paint thinner is its combination of three properties:

• High solvency power (KB value ~105): Toluene dissolves a wide range of resins including alkyds, polyurethanes, epoxies, chlorinated rubber, acrylics, and natural resins. Its Kauri-Butanol value of approximately 105 (per ASTM D1133) places it in the "very strong" solvent category, capable of dissolving materials that weaker solvents like mineral spirits (KB ~30) cannot touch.
• Moderate evaporation rate (2.0 relative to n-BuAc): Toluene evaporates about twice as fast as n-butyl acetate (the industry reference standard). This medium evaporation rate provides enough "open time" for the coating to flow and level before film formation begins, while still allowing reasonable dry-to-touch times.
• Excellent compatibility: Unlike highly polar solvents (ketones, alcohols) that can precipitate certain resins, toluene is compatible with virtually all nonpolar and moderately polar coating systems. It rarely causes blushing (moisture entrapment), lifting of previous coats, or resin precipitation when used correctly.

Paint System Compatibility: Which Coatings Work with Toluene

Not all paint systems are compatible with toluene. Using the wrong thinner causes coating defects ranging from poor adhesion to complete system failure. The following breakdown covers every major coating type and its compatibility with toluene as a thinner.

Oil-Based and Alkyd Paints

Toluene is an excellent thinner for oil-based and alkyd coatings. Alkyd resins are formed from polyols and fatty acids, creating a moderately polar polymer that dissolves readily in aromatic hydrocarbons. Toluene provides better resin solvency than mineral spirits (the most common alkyd thinner) and is often used when a more aggressive reduction is needed for spray application or when working in cold conditions where mineral spirits evaporate too slowly.

• Recommended thinning ratio: 10–15% by volume for brush/roller application; 15–25% for conventional spray; 5–10% for HVLP spray.
• Benefit: Faster dry time than mineral spirits alone; improved flow on large surfaces.
• Caution: Toluene's faster evaporation can cause brush drag on hot days. Blend with 20–30% slow-evaporating mineral spirits to extend open time if needed.

Epoxy Coatings (Two-Component)

Two-component epoxy coatings use bisphenol A or bisphenol F resins cross-linked with amine or polyamide hardeners. Toluene is commonly specified in the technical data sheet (TDS) as an approved thinner, particularly for industrial maintenance epoxies per SSPC Paint specifications. Its strong solvency helps reduce the high viscosity typical of catalyzed epoxy systems without compromising cross-link density.

• Recommended thinning ratio: Per manufacturer TDS, typically 5–15% maximum by volume. Excessive thinning reduces the dry film thickness (DFT) below specification and voids warranty.
• Benefit: Powerful enough to handle the high solids content of industrial epoxies.
• Caution: Some water-based epoxies and newer high-solids formulations are NOT compatible with toluene. Always check the TDS. Adding toluene to a waterborne epoxy causes immediate coagulation.

Polyurethane Coatings

Polyurethane coatings (both single-component moisture-cure and two-component isocyanate-cured) are among the most common applications for toluene as a thinner. In fact, toluene is the historical "reference solvent" for the polyurethane coating industry. Its moderate evaporation rate allows the isocyanate crosslinking reaction to proceed properly while the solvent exits the film.

• Recommended thinning ratio: 10–20% for brush/roller; 15–30% for spray. Polyurethane coatings for wood floors typically specify 10–15% maximum.
• Benefit: Optimizes spray atomization and flow for high-gloss finishes.
• Caution: For moisture-cure polyurethanes, excessive thinning extends the cure time proportionally because the cure mechanism depends on atmospheric moisture reacting with free isocyanate groups — more solvent means longer time for moisture to diffuse into the thicker wet film.

Lacquers (Nitrocellulose and Acrylic)

Toluene is a primary solvent in lacquer thinner formulations. Nitrocellulose lacquers require a blend of active solvents (toluene, MEK, butyl acetate), diluents (toluene again), and tail solvents (butyl cellosolve, cyclohexanone) for proper film formation. Toluene typically constitutes 20–40% of a lacquer thinner blend by volume.

• Recommended thinning ratio: Lacquer thinners are pre-blended. Toluene alone can thin lacquer but may cause film defects (cracking, loss of clarity) because lacquer requires balanced evaporation across fast, medium, and slow solvents.
• Benefit: High solvency keeps nitrocellulose fully dissolved during application.
• Caution: Straight toluene as a lacquer thinner evaporates too uniformly (no fast initial flash or slow tail), which can cause orange peel and poor leveling. Use blended lacquer thinner for best results.

Coatings NOT Compatible with Toluene

• Latex / water-based paints: Toluene is immiscible with water. Adding it to latex paint causes immediate separation and destroys the paint. Never use toluene with any waterborne coating system.
• Shellac: Shellac is an alcohol-soluble resin. It requires denatured alcohol (ethanol + methanol) as its thinner. Toluene will not dissolve shellac.
• Water-based polyurethanes: Despite the "polyurethane" name, waterborne versions use water as the carrier. Toluene is completely incompatible.
• Powder coatings: Applied as dry powder and cured with heat. No liquid thinner is used.

Mixing Ratios and Viscosity Adjustment for Spray Application

Achieving the correct spray viscosity is the difference between a professional finish and a coating failure. Too thick, and the paint cannot atomize properly, creating orange peel and heavy edges. Too thin, and the coating runs, sags, and fails to build adequate DFT in the specified number of coats.

Measuring Viscosity: The Zahn Cup Method

Professional paint applicators use viscosity cups (Zahn cups per ASTM D4212, or Ford cups per ASTM D1200) to measure and control thinning. The cup is dipped into the thinned paint, and the time (in seconds) for the paint to drain through the orifice is recorded. Each cup size corresponds to a viscosity range.

Step-by-Step Thinning Procedure

1. Read the TDS: The coating manufacturer's Technical Data Sheet specifies the approved thinner(s) and maximum thinning percentage. Exceeding this voids warranty and may compromise film performance.
2. Stir the paint thoroughly: Use a power mixer for 3–5 minutes. Settled pigments can make the paint appear thicker than it actually is.
3. Measure baseline viscosity: Dip a Zahn #2 cup and record the drain time before adding any thinner.
4. Add toluene in small increments: Add 5% by volume, stir for 2 minutes, and re-measure viscosity. Repeat until target viscosity is achieved.
5. Record the final ratio: Document the exact amount of toluene added for consistency across batches and future reference.
6. Test spray a sample: Spray a test panel and evaluate atomization, flow, sag resistance, and dry time before committing to the full application.

Toluene vs. Xylene vs. MEK vs. Mineral Spirits: Head-to-Head Comparison

Professional applicators frequently debate which solvent to use. The reality is that each has a specific niche where it performs best. The following comparison uses measurable technical properties to guide selection rather than preference or habit.

When to Choose Each Solvent

• Toluene: Best for polyurethane thinning, epoxy reduction, resin dissolution, and applications requiring moderate evaporation with strong solvency. The go-to general-purpose strong solvent for industrial coatings.
• Xylene: Choose when you need toluene-level solvency but with a slower evaporation rate. Ideal for hot-weather spraying, epoxy tail solvent, and flow/leveling improvement. Better for recoat window extension on multicoat systems.
• MEK (methyl ethyl ketone): Strongest solvency of the four and fastest evaporation. Best for vinyl, fiberglass (polyester resin), and lacquer applications. The go-to cleanup solvent for cured epoxy and polyester residue. Its water miscibility makes it useful for azeotropic drying.
• Mineral spirits: The economical choice for oil-based and alkyd coatings, brush cleanup, and degreasing. Low solvency limits its use on high-performance coatings, but its slow evaporation gives excellent brush marks elimination and long open time. Safest in terms of flash point among these four.

OSHA Exposure Limits and Health Effects

Toluene is a regulated substance under OSHA's General Industry Standards. While not as tightly controlled as benzene (which it replaced in many applications due to benzene's carcinogenicity), toluene exposure requires monitoring and controls in professional settings.

Exposure Limits

Health Effects by Exposure Level

• Below 20 ppm (ACGIH TLV): Generally considered safe for chronic occupational exposure. No significant health effects expected at these levels with proper PPE use.
• 20–100 ppm: Mild CNS effects possible including headache, dizziness, and fatigue. The difference between the ACGIH TLV (20 ppm) and the older OSHA PEL (200 ppm) reflects updated toxicological data showing reproductive effects at levels previously considered safe.
• 100–500 ppm: Pronounced CNS depression: confusion, impaired coordination, nausea. Visual disturbances and hearing impairment may occur. At 500 ppm (IDLH), immediate evacuation is required.
• >500 ppm: Life-threatening. Loss of consciousness, seizures, cardiac arrhythmia, and death are possible at high concentrations.

Chronic Health Concerns

Unlike benzene (which it structurally resembles), toluene is NOT classified as a human carcinogen by IARC, NTP, or OSHA. However, chronic toluene exposure is associated with:

• Reproductive toxicity: The ACGIH lowered the TLV from 50 to 20 ppm specifically based on evidence of developmental toxicity. Pregnant workers should avoid toluene exposure entirely.
• Neurotoxicity: Chronic high-level exposure causes persistent CNS damage including cognitive impairment, hearing loss, and color vision deficiency.
• Liver and kidney effects: Toluene is metabolized to hippuric acid, excreted through kidneys. Chronic exposure at high levels may impair both organ systems.

Ventilation Requirements and Engineering Controls

Engineering controls — primarily ventilation — are the first line of defense against toluene exposure, taking priority over respiratory PPE per OSHA's hierarchy of controls (29 CFR 1910.134(a)(1)).

Ventilation Design for Toluene Operations

• Spray booths: Must meet OSHA 29 CFR 1910.94(c) and NFPA 33 requirements. Minimum face velocity of 100 linear feet per minute (lfm) for cross-draft booths; 75 lfm for downdraft booths. Exhaust must be to the outdoors with no recirculation of toluene-laden air.
• Open shop areas: General dilution ventilation must provide sufficient air exchange to keep toluene below the PEL. Rule of thumb: 1,000–2,000 CFM per gallon of toluene evaporated per hour, depending on room volume and mixing factor.
• Dip tanks: OSHA 29 CFR 1910.94(d) requires local exhaust ventilation at all dip tank operations. Slot velocity at the tank edge must be sufficient to capture vapors before they reach the breathing zone (typically 75–150 lfm depending on tank width).
• Storage areas: Continuous mechanical ventilation at a rate of 1 CFM per square foot of floor area, or a minimum of 150 CFM, whichever is greater (NFPA 30, Section 9.3.5).

Explosion Prevention

Toluene vapor in air is explosive between 1.1% and 7.1% by volume (LEL = 1.1%, UEL = 7.1%). All electrical equipment in areas where toluene vapor may accumulate must be rated for NEC Class I, Division 1 or Division 2 hazardous locations, depending on the probability of an explosive concentration occurring. Key controls:

• Explosion-proof lighting, motors, and switches in spray booths
• Bonding and grounding of all containers during transfer to prevent static discharge (NFPA 77)
• No open flames, sparks, or hot surfaces above toluene's autoignition temperature (480°C / 896°F) within the ventilated area
• Continuous LEL monitoring with automatic ventilation shutdown and alarm at 25% of LEL (NFPA 86)

Toluene Storage and Handling Best Practices

Proper storage of toluene prevents fires, reduces vapor exposure, maintains product quality, and ensures regulatory compliance. Toluene is classified as a Class IB flammable liquid (flash point <73°F, boiling point ≥100°F) under NFPA 30.

Storage Requirements

• Containers: Store in original containers or approved DOT/UN-rated containers. Use grounded metal drums (UN1A1 or UN1A2) or approved safety cans (FM/UL listed) for quantities up to 5 gallons. HDPE containers are NOT recommended for toluene — toluene attacks many plastics and can permeate polyethylene over time.
• Cabinets: Store inside FM-approved flammable storage cabinets meeting NFPA 30 Section 9.5. Maximum 60 gallons per cabinet, maximum 3 cabinets per fire area without additional fire protection.
• Rooms: Dedicated inside flammable liquid storage rooms must meet NFPA 30 Chapter 9 requirements: 2-hour fire-rated walls, self-closing fire doors, explosion-relief venting, liquid-tight sills or ramps, and mechanical ventilation.
• Temperature: Store below 100°F. Keep away from direct sunlight and heat sources. Toluene's vapor pressure increases significantly with temperature — at 100°F, vapor pressure is approximately 55 mmHg (vs. 22 mmHg at 68°F), doubling the vapor generation rate.
• Segregation: Keep toluene away from strong oxidizers (nitric acid, hydrogen peroxide >30%, chromic acid), which can cause violent reactions or fire.

Shelf Life and Quality

Toluene has an indefinite shelf life when stored in sealed containers away from heat and light. Unlike reactive chemicals, it does not degrade, polymerize, or become unstable with age. However, contamination from moisture, dust, or other chemicals can affect performance in sensitive applications. For critical coating work, verify purity using a refractometer (refractive index of pure toluene at 20°C = 1.4961) or by checking specific gravity (0.866–0.869 at 20°C per ASTM D891).

Practical Application Tips from the Field

Brush and Roller Application

• Thin 5–10% for brush, 10–15% for roller. Over-thinning causes drips and inadequate film build.
• Use natural bristle brushes with toluene-based paints. Synthetic brushes (nylon/polyester) may soften or dissolve in toluene.
• Work in well-ventilated areas. Even with modest thinning, brush application puts your face within inches of the toluene vapor source.
• Clean brushes immediately after use — dried polyurethane on a brush is extremely difficult to remove.

Spray Application

• For conventional air spray, thin to 18–22 seconds on a Zahn #2 cup. Test pattern on cardboard before spraying the workpiece.
• Maintain 8–10 inches distance from the surface. Closer causes runs; farther causes dry spray and orange peel.
• Apply in multiple thin coats (1.5–2.0 mils wet per pass) rather than one heavy coat. Allow flash-off time (5–10 minutes) between coats.
• In cold conditions (<60°F), switch to a faster-evaporating thinner (MEK or acetone blend) or warm the paint. Toluene's evaporation slows significantly below 60°F, risking sags and extended cure.
• In hot conditions (>85°F), blend toluene 50/50 with xylene to slow the evaporation rate and prevent dry spray and orange peel.

Equipment Cleanup

Toluene is an excellent gun washer solvent due to its high solvency. Flush spray equipment with toluene immediately after use. For dried paint residue, soak metal parts in toluene for 30–60 minutes, then brush clean. For hardened polyurethane, MEK may be needed as it has slightly higher solvency on cured isocyanate films. Always reclaim and properly dispose of spent cleaning solvent — do not pour down drains.

Frequently Asked Questions

Can I use toluene to thin latex paint?

No. Latex (water-based) paints use water as the carrier and are not compatible with toluene. Adding toluene to latex paint causes immediate separation and ruins the paint. Use water or the manufacturer's recommended latex thinner (typically a glycol ether/water blend). If you need to switch between solvent-based and water-based systems, clean all equipment thoroughly between products.

Is toluene stronger than xylene for paint thinning?

In terms of KB value (solvency power), toluene (~105) is slightly stronger than mixed xylenes (~98). However, the practical difference in solvency is small. The more significant difference is evaporation rate: toluene evaporates nearly 3 times faster than xylene (2.0 vs. 0.7 relative to n-BuAc). This makes toluene better for fast-dry applications and xylene better for hot-weather spraying where slower evaporation prevents defects.

How much toluene should I add to spray polyurethane?

Start with the manufacturer's recommendation (typically 10–20% by volume). Add in 5% increments, stir thoroughly, and test spray viscosity with a Zahn #2 cup, targeting 18–22 seconds. For airless spraying, less thinning is needed (5–10%) since the pump provides atomization pressure. Never exceed the TDS maximum thinning percentage.

Why does my finish turn milky when I use toluene on humid days?

This is called "blushing" and occurs when rapid solvent evaporation cools the film surface below the dew point, causing atmospheric moisture to condense into the wet film. While toluene itself does not attract moisture (it is immiscible with water), its moderate evaporation rate can trigger this cooling effect in high humidity (>85% RH). Solutions: add 10–15% slow-evaporating solvent (butyl cellosolve, PM) to retard the cooling effect, reduce spray pressure, or apply lighter coats.

Is toluene a carcinogen?

No. Toluene is NOT classified as a carcinogen by IARC (Group 3: "not classifiable as to its carcinogenicity to humans"), NTP, or OSHA. This is a significant distinction from benzene (IARC Group 1 carcinogen), which toluene replaced in many industrial applications specifically because of benzene's cancer risk. However, toluene is still toxic and causes reproductive toxicity, neurotoxicity, and organ damage at elevated exposure levels. It requires appropriate engineering controls and PPE.

Can toluene dissolve cured epoxy?

Toluene can soften partially cured epoxy but has limited effectiveness on fully cross-linked epoxy films. Fully cured two-component epoxy is a thermoset material with a three-dimensional polymer network that resists solvent penetration. For removing cured epoxy, MEK or methylene chloride (where still permitted) is more effective. For thick epoxy buildup, mechanical removal (grinding, blasting) is often the most practical approach.
