The device in your hand right now—the one displaying these words—required over 500 individual chemical processing steps before it left the factory. Acids etched its circuits. Solvents cleaned its board. Glycols cool the data center serving this page.
This guide maps every chemical to every step, from the moment a raw silicon ingot enters a cleanroom to the instant a satellite reaches orbit. If you build, design, or procure for high-tech manufacturing, this is your reference.
What you'll learn: The exact chemicals, purity grades, and processes behind semiconductor wafer fabrication, PCB manufacturing, solar cell production, EV battery assembly, data center cooling, quality-control testing, and aerospace preparation—with direct links to every product.
Chemical Purity Grades: What High-Tech Manufacturing Demands
Not all chemicals are equal. The grade determines whether your wafer has 10 defects or 10 million.
| Grade | Typical Purity | Metallic Impurities | Used In |
|---|---|---|---|
| Technical | 90–99% | < 100 ppm | General industrial, cleaning, water treatment |
| ACS Reagent | 99.0–99.9% | < 10 ppm | Lab analysis, R&D, PCB manufacturing, QC |
| Electronic / Semi Grade | 99.99%+ | < 1 ppb | Wafer fab, chip etching, photoresist processing |
| ULSI Grade | 99.9999%+ | < 10 ppt | Leading-edge nodes (5 nm, 3 nm, 2 nm) |
Alliance Chemical supplies ACS Reagent and Semiconductor-grade chemicals. For a deeper dive, read our Complete Chemical Grades Guide.

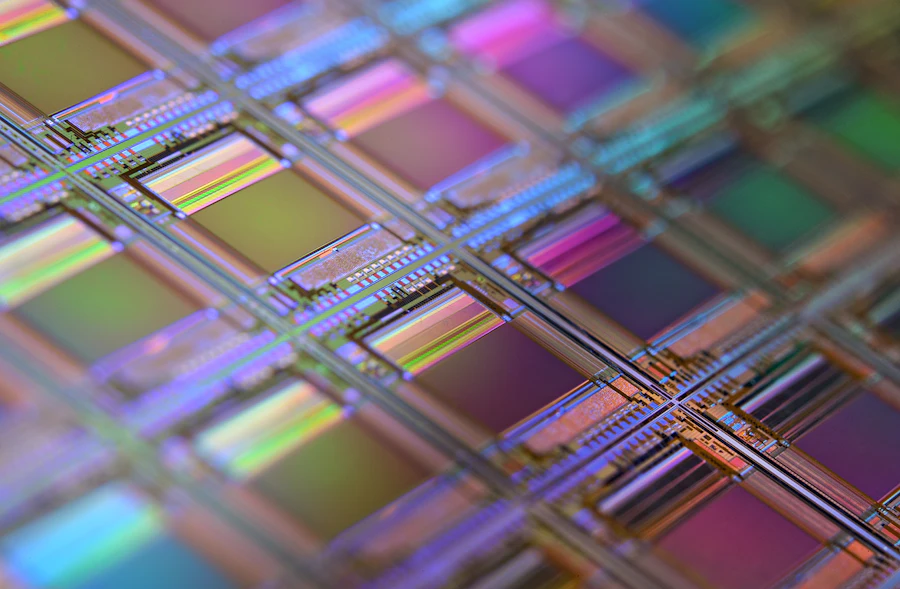

Wafer Cleaning: Where Every Chip Begins
Before a single transistor is etched, the silicon wafer must be atomically clean. The industry-standard RCA Clean (developed at RCA Labs in 1965 and still used today) removes organic residues, metallic ions, and native oxide in a precise chemical sequence.
SC-1 (Standard Clean 1) — Organic & Particle Removal
A heated bath of ammonium hydroxide + hydrogen peroxide + DI water (ratio 1:1:5 at 75°C) oxidizes organic films and lifts particles from the wafer surface. The H2O2 continuously grows and dissolves a thin oxide layer, carrying contaminants away.
SC-2 (Standard Clean 2) — Metal Ion Removal
A heated bath of hydrochloric acid + hydrogen peroxide + DI water (ratio 1:1:6 at 75°C) dissolves alkali and transition metal contaminants that SC-1 leaves behind. Iron, aluminum, and magnesium ions are solubilized and rinsed away.
Piranha Etch — Heavy Organic Stripping
When wafers carry heavy organic contamination, fabs deploy the piranha solution: a 3:1 mix of concentrated sulfuric acid (96%) + hydrogen peroxide (30%). This exothermic reaction reaches 120°C and aggressively oxidizes carbon-based contaminants to CO2 and H2O.
Hydrogen Peroxide 30%
ACS Grade
Ammonium Hydroxide 29%
ACS Grade
Hydrochloric Acid 37%
ACS Grade
Sulfuric Acid 96%
ACS Grade
Deionized Water
Type II
Wet Etching: Acids That Sculpt Microchips
Wet etching uses liquid chemicals to selectively dissolve material layers from the wafer. Unlike dry (plasma) etching, wet processing is isotropic—it etches in all directions equally—making it ideal for removing bulk material, stripping sacrificial layers, and texturing surfaces.
Silicon Nitride (Si3N4) Etching
Hot phosphoric acid (85%) at 160–180°C selectively etches silicon nitride while leaving oxide layers virtually untouched. The selectivity ratio exceeds 40:1, making it indispensable for LOCOS isolation and spacer processes.
Metal Layer Etching
Aluminum interconnect etching uses a heated mixture of phosphoric acid + nitric acid + acetic acid + water (the "PAN etch"). H3PO4 dissolves the alumina, HNO3 oxidizes the aluminum, and acetic acid buffers the reaction rate.
Chemical Mechanical Polishing: Flattening at the Atomic Level
After each deposition and etch cycle, the wafer surface has topography—hills and valleys measured in nanometers. Chemical Mechanical Polishing (CMP) planarizes the surface to sub-nanometer flatness, enabling the next layer of circuitry to be patterned with photolithographic precision.
CMP combines a rotating polishing pad with a chemical slurry. Hydrogen peroxide oxidizes the metal or silicon surface, softening it so abrasive particles can sweep the material away. Potassium hydroxide (KOH) adjusts slurry pH for oxide CMP, typically targeting pH 10–11.
Hydrogen Peroxide 30%
CMP Oxidizer
Potassium Hydroxide Flakes
ACS Grade
Deionized Water
Post-CMP Rinse

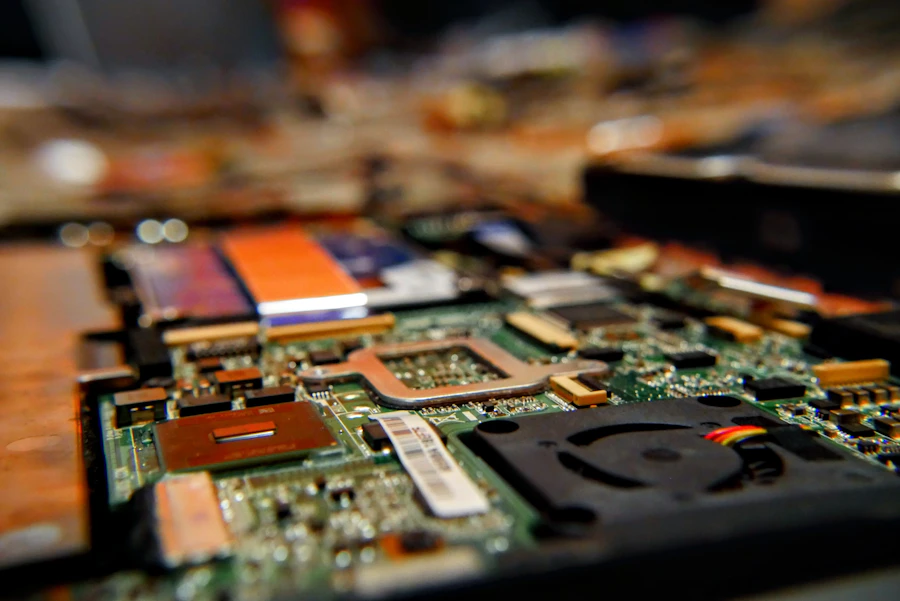

PCB Manufacturing: Printing the Nervous System
Every electronic device has a printed circuit board—the substrate that connects components with copper traces. PCB fabrication is fundamentally a chemical process: copper is deposited, patterned with photoresist, and then etched away everywhere the circuit doesn't need it.
Copper Etching
Ferric chloride (FeCl3) at 40% concentration remains the industry workhorse. The Fe3+ ion oxidizes copper metal to Cu2+, dissolving the unwanted copper and leaving behind the circuit pattern. A single liter can etch approximately 50 grams of copper.
Cleaning & Defluxing
After soldering, boards are cleaned with IPA 99%+ to remove flux residues. For tougher residues, acetone or glycol ether EE dissolves epoxy-based fluxes without damaging the substrate.
Ferric Chloride 40%
Copper Etchant
Isopropyl Alcohol 99.9%
ACS Grade
Acetone
ACS Grade
Glycol Ether EE
ACS Grade
Methanol
ACS Grade
Solar Cells & EV Batteries: Chemistry Fueling the Energy Transition

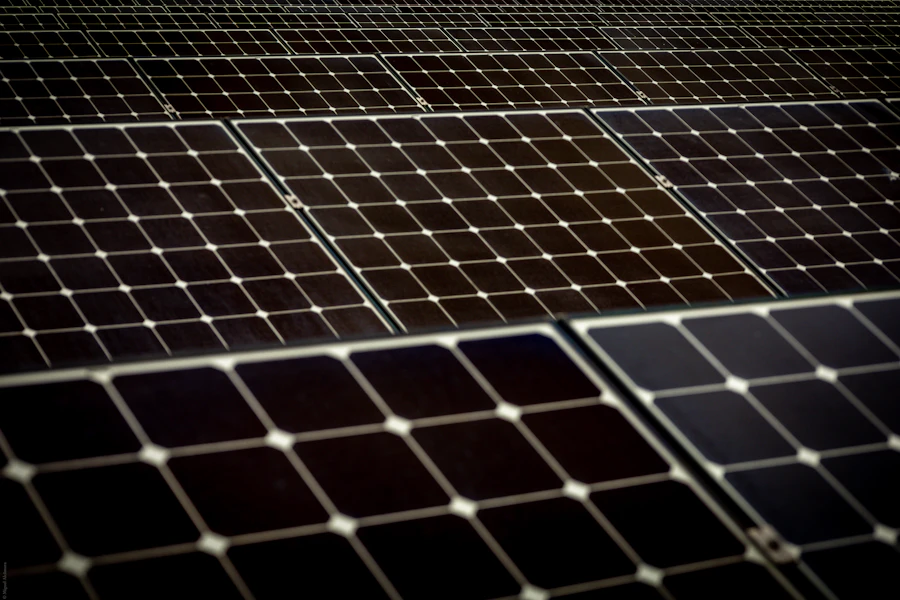

Solar Cell Manufacturing
Crystalline silicon solar cells share DNA with semiconductor wafers. After slicing ingots into thin wafers, the surface is textured with KOH to create microscopic pyramids that trap light. Phosphorus doping uses phosphoric acid as a precursor. Edge isolation uses nitric acid baths.
EV Battery Manufacturing
Lithium-ion cathode production requires phosphoric acid for LFP synthesis. Sulfuric acid plays a role in lithium extraction from spodumene ore. Battery-grade deionized water prepares electrode slurries, and glycols manage thermal conditions in battery pack cooling loops.
Data Center & EV Thermal Management: Keeping AI Cool
A single NVIDIA H100 GPU generates 700 watts of heat. A rack of eight produces 5,600 watts in a space smaller than a refrigerator. As AI workloads scale, air cooling is hitting its physical limits.
Why Semiconductor-Grade Glycol?
Standard antifreeze contains silicate and phosphate inhibitors designed for car engines. In data center cold plates with microchannel passages under 1 mm, those inhibitors precipitate and clog. Semiconductor-grade ethylene glycol uses organic acid inhibitors (OAT) that won't foul precision hardware.
Quality Control & Analytical Testing: Verifying Every Layer
High-tech manufacturing demands verification at every step. Incoming raw materials are tested for purity. In-process wafers are analyzed for contamination. Every one of these tests requires ACS-grade analytical solvents that won't introduce their own contaminants.
Chromatography & Spectroscopy
Methanol ACS and acetone ACS are primary solvents for HPLC and GC. Hexane ACS and n-heptane ACS serve as non-polar reference solvents for residue analysis.
Surface Cleaning for Analysis
Before SEM, XPS, or AFM analysis, samples are cleaned with IPA 99.9% and acetone. The sequence matters: acetone first (dissolves organics), then IPA (removes acetone residue), then DI water rinse.
Methanol
ACS Reagent
Hexane
ACS Reagent
N-Heptane 99%
ACS Grade
IPA 99.9%
ACS Reagent
Acetone
ACS Grade
Aerospace & Defense: Chemistry That Reaches Orbit
Aerospace electronics face extreme conditions: thermal cycling from -65°C to +125°C, vibration, radiation, and vacuum. Alliance Chemical holds CAGE Code 1LT50 for direct supply to DOD, DLA, NASA, and SOCOM programs.
Precision Cleaning (MIL-STD Compliance)
IPA 99.9% ACS is the primary solvent for defluxing flight hardware under MIL-STD-2000 and IPC J-STD-001 (Space Addendum). N-heptane ACS is the benchmark solvent in MIL-PRF-680 cleanliness testing.
Surface Preparation & Thermal Management
Aerospace anodizing requires phosphoric acid, sulfuric acid, and oxalic acid at ACS purity. Satellite thermal loops use inhibited propylene glycol across a 200°C range. Ground support equipment uses ethylene glycol cooling systems during launch countdown.
IPA 99.9%
Flight Hardware
Oxalic Acid
ACS Grade
Ethylene Glycol
Semi Grade
Propylene Glycol
USP Grade
The CHIPS Act & America's Chemical Supply Chain
The CHIPS and Science Act is investing $280 billion to bring semiconductor manufacturing back to U.S. soil. Intel, TSMC, Samsung, and Micron are building new fabs in Arizona, Ohio, Texas, and New York. Every one of those fabs needs a domestic chemical supply chain.
The semiconductor cleaning chemicals market alone is projected to grow from $3.2 billion (2024) to $6.8 billion by 2034. As reshoring accelerates, demand for high-purity chemicals from American suppliers is surging.
Alliance Chemical is positioned to serve this demand with ACS Reagent and semiconductor-grade chemicals shipped from U.S.-based facilities, backed by COA for every lot and SDS with every order.
