In the world of thermal management, two fluids dominate the conversation: Ethylene Glycol (EG) and Propylene Glycol (PG). From automotive radiators to pharmaceutical production lines, from data center liquid cooling loops to brewery fermentation tanks, these heat transfer fluids are the invisible workhorses that keep critical systems running safely and efficiently.

But choosing the wrong glycol — or using it at the wrong concentration, without proper inhibitors, or in a non-compliant application — can lead to catastrophic outcomes: corroded heat exchangers, burst pipes, regulatory violations, or even toxic exposure incidents. This guide delivers the technical depth that engineers and facility managers need, backed by real performance data, to make the right decision every time.

The Science of Freeze Protection: How Glycol-Water Solutions Work

Both ethylene glycol and propylene glycol are diols — organic compounds with two hydroxyl (-OH) groups that make them fully miscible in water. When dissolved in water, glycol molecules disrupt the hydrogen bonding network that water molecules rely on to form ice crystals. This phenomenon, known as freezing point depression, is governed by Raoult's Law and the colligative properties of solutions.

Freezing Point Depression

As glycol concentration increases, the freezing point drops progressively — but not linearly. Maximum freeze protection occurs at roughly 60% glycol by volume, beyond which the freezing point actually begins to rise again. The table below shows exact freeze points at common concentrations, data that is essential for system design calculations.

Boiling Point Elevation

Glycol solutions also raise the boiling point of the mixture, which allows systems to operate at higher temperatures without vapor lock or cavitation. In pressurized systems (like cooling towers operating at 15 psi), a 50% EG solution can handle fluid temperatures approaching 265°F (130°C).

Viscosity Trade-Offs

Higher glycol concentration means higher viscosity, which increases pumping energy and reduces convective heat transfer. This trade-off is more pronounced with propylene glycol, whose molecular structure creates roughly 40–60% higher viscosity than ethylene glycol at the same concentration and temperature. Engineers must factor this into pump sizing and heat exchanger design. Using the correct water type matters too — distilled vs deionized water can affect long-term fluid stability and mineral buildup.

Freeze Point Depression by Concentration

This table provides the approximate freeze points (burst protection points are even lower) for ethylene glycol and propylene glycol at common volumetric concentrations. Use these values for initial system design; always verify with your fluid manufacturer's specific product data sheets.

EG vs PG: Head-to-Head Technical Comparison

This is the core decision matrix. Each property is rated for both glycols at a 50% concentration with water, which is the most common industrial blend point.

The data makes one thing clear: EG wins on raw thermal performance and cost, while PG wins on safety, regulatory compliance, and environmental impact. Neither fluid is universally "better" — the correct choice depends entirely on the application context and regulatory requirements.

Ethylene Glycol: The Industrial Workhorse

Ethylene Glycol (IUPAC name: ethane-1,2-diol, formula: C₂H₆O₂) has been the backbone of industrial heat transfer and automotive cooling for over eight decades. Its dominance stems from a combination of superior thermodynamic properties, widespread availability, and competitive pricing.

Key Performance Advantages

• Lower Viscosity: EG's smaller molecular weight (62.07 g/mol vs PG's 76.09 g/mol) translates directly into lower fluid viscosity, especially at sub-zero temperatures. This reduces parasitic pump loads by 15–25% compared to PG at equivalent concentrations, a significant operational cost factor in data center cooling environments running 24/7.
• Superior Thermal Conductivity: At 50% concentration, EG delivers approximately 8–10% better thermal conductivity than PG. This allows engineers to specify smaller heat exchangers, lower flow rates, and smaller-diameter piping — reducing capital expenditure on new installations.

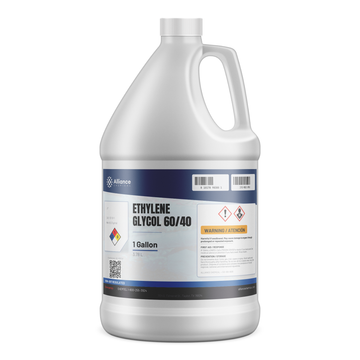

• Broader Freeze Protection: A 60/40 EG/water blend achieves freeze protection down to approximately −60°F (−51°C), providing a wider safety margin for extreme-cold installations. Alliance Chemical offers pre-mixed 50/50 and 60/40 formulations for convenience.
• Cost Efficiency: As a high-volume commodity chemical derived from ethylene oxide, EG is typically 20–30% less expensive than PG per gallon, a substantial saving when filling systems that hold hundreds or thousands of gallons.

The Toxicity Reality

Ethylene glycol's primary risk factor is its acute oral toxicity. The lethal dose for an adult human is estimated at 1.4–1.6 mL/kg body weight (approximately 100 mL for a 150-lb adult). Its sweet taste makes it particularly dangerous to children and pets. For this reason, many commercial formulations include a bittering agent (denatonium benzoate) to deter accidental ingestion. Proper chemical safety protocols and personal protective equipment are absolutely essential when handling EG.

Propylene Glycol: The Safety-First Solution

Propylene Glycol (IUPAC name: propane-1,2-diol, formula: C₃H₈O₂) has risen from a niche alternative to an industry standard in any application where human safety, food contact, or environmental sensitivity is a factor. Its classification as Generally Recognized As Safe (GRAS) by the FDA (21 CFR 184.1666) is the single most important differentiator in the glycol market.

Understanding PG Grades

The distinction between grades is not optional — it is a legal and safety imperative:

• Technical Grade PG: Suitable for HVAC systems, solar thermal loops, sidewalk snowmelt, geothermal heat pumps, and general industrial applications where the fluid remains in a closed loop with no food contact risk.
• USP/Food Grade PG: Meets United States Pharmacopeia standards. Legally required in any system where the heat transfer fluid could contact potable water, food products, or pharmaceuticals — even incidentally. Learn more in our propylene glycol food-grade applications guide.

Where PG Is Mandatory

Federal regulations (USDA, FDA, EPA) and industry standards (ASHRAE, IAPMO) mandate non-toxic heat transfer fluids in numerous applications:

• Food & Beverage Processing: Breweries, wineries, dairies, bakeries, meat processing — any facility where the cooling loop is within proximity of consumable products.
• Pharmaceutical Manufacturing: Reactor jacket cooling, lyophilizer systems, and cleanroom HVAC where contamination would compromise product integrity.
• Healthcare Facilities: Hospital HVAC systems, MRI cooling loops, and laboratory climate control where patient safety is paramount. Proper chemical storage is also critical in these environments.
• Educational & Residential: Schools, dormitories, apartment complexes, and hotels where untrained occupants could be exposed to a leak.
• Marine & RV: Winterizing potable water systems in recreational vehicles, boats, and seasonal cabins where non-toxicity is essential.

Application Selection Guide: Which Glycol for Which Industry?

Use this quick-reference table to identify the correct glycol type for your specific application. When in doubt, always consult regulatory requirements for your jurisdiction and industry.

Top Applications at a Glance

The Unseen Guardian: Inhibitor Chemistry Explained

Perhaps the most overlooked — and most critical — aspect of glycol-based heat transfer fluids is the corrosion inhibitor package. Raw, uninhibited glycol solutions are actively corrosive. In the presence of heat, dissolved oxygen, and dissimilar metals, glycol degrades into organic acids (glycolic, formic, acetic, and oxalic acid) that attack system metallurgy from the inside out.

Types of Inhibitor Technology

Modern glycol formulations use one of three inhibitor approaches, each with distinct advantages. For a deep dive, see our comprehensive guide to OAT vs NOAT vs Hybrid inhibitor chemistry:

• NOAT (Nitrite/Amine Organic Acid Technology): Traditional inhibitor packages using nitrites, borates, and phosphates. Effective across many metals but depletes faster, requiring annual testing and top-up. Commonly found in older automotive and industrial formulations.
• OAT (Organic Acid Technology): Uses long-life organic acids (sebacic, 2-EHA) that form a thin, self-healing passivation layer on metal surfaces. Extended service life of 5–8+ years. Increasingly preferred for data centers and modern automotive applications.
• HOAT (Hybrid Organic Acid Technology): Combines the rapid-action corrosion protection of nitrites with the long-term durability of organic acids. Offers the best of both worlds and is recommended for mixed-metallurgy systems containing copper, steel, aluminum, and solder.

For a premium, pre-inhibited solution that combines propylene glycol safety with a robust, multi-metal HOAT corrosion inhibitor package, Arctic Assist from Alliance Chemical is engineered for maximum system protection and extended service life.

Fluid Maintenance Best Practices

Regardless of which glycol you select, ongoing fluid maintenance is essential for long-term system health:

• Test annually for pH, reserve alkalinity, glycol concentration (refractometer), and inhibitor levels.
• Maintain pH between 8.0 and 10.5. Below 7.5 indicates inhibitor depletion and active corrosion risk.
• Use deionized or distilled water for all dilutions — tap water introduces chlorides, sulfates, and hardness minerals that accelerate corrosion. Our guide on distilled vs deionized water covers the differences.
• Never mix glycol types (EG + PG) or inhibitor technologies (OAT + NOAT) without a complete system flush.
• Replace the fluid entirely every 3–5 years for NOAT-inhibited fluids, or per manufacturer recommendation for OAT/HOAT fluids.

Environmental Impact and Disposal Requirements

The environmental profiles of EG and PG are dramatically different, and regulations governing their disposal reflect this disparity.

Propylene Glycol: Environmentally Favorable

PG is readily biodegradable, typically breaking down in soil and water within 5–10 days. It has low aquatic toxicity and is not classified as a hazardous substance under RCRA. However, spent PG solutions may still require proper disposal due to dissolved metals, inhibitor residues, and degradation byproducts picked up during service. Following proper chemical disposal procedures is always recommended.

Ethylene Glycol: Regulated Waste

EG biodegrades more slowly (20–30 days) and exerts a high biological oxygen demand (BOD) that can deplete oxygen in waterways, harming aquatic life. In many jurisdictions, spent EG is classified as hazardous waste and must be collected, documented, and disposed of through licensed waste haulers. Spill cleanup must be immediate and thorough. Understanding industrial acid behavior and degradation products helps contextualize why proper glycol disposal matters.

Common Mistakes That Destroy Glycol Systems

After decades of supporting industrial and commercial glycol systems, Alliance Chemical's technical team sees the same preventable failures repeatedly. Avoid these pitfalls:

1. Using tap water for dilution. Municipal water contains chlorides, sulfates, and calcium that react with inhibitors and form scale deposits. Always use deionized or distilled water.
2. Over-concentrating the solution. More glycol does not mean more protection. Concentrations above 60% actually raise the freeze point, increase viscosity dramatically, and reduce heat transfer. Follow manufacturer specifications.
3. Neglecting annual testing. Glycol fluids degrade continuously. A refractometer reading alone is insufficient — you must also test pH, reserve alkalinity, and inhibitor levels to assess true fluid health.
4. Mixing glycol types or inhibitor chemistries. EG + PG mixtures, or OAT + NOAT inhibitor blends, create unpredictable chemical interactions that void warranties and accelerate corrosion.
5. Ignoring air elimination. Dissolved oxygen is the primary driver of glycol degradation and corrosion. Ensure air separators, expansion tanks, and automatic air vents are properly installed and maintained. Products like isopropyl alcohol are sometimes used for system degreasing prior to glycol fill — ensure complete removal before charging.
6. Skipping system flush before fluid change. Residual old fluid, sludge, and corrosion products contaminate new glycol from day one. A thorough flush with clean water (multiple fill-and-drain cycles) is essential when transitioning between fluid types.

The Final Verdict: Choosing Your Glycol

The EG vs PG debate is not about finding a single "winner" — it is about matching the right tool to the right job. Here is the decision framework distilled to its essence:

In either case, always use a properly inhibited formulation, maintain correct concentration levels, test your fluid annually, and work with a supplier like Alliance Chemical that provides both the products and the technical expertise to keep your systems running at peak performance. For a broader understanding of chemical handling principles, explore our guides on hydrogen peroxide industrial applications and comprehensive chemical safety.
