Essential 3D Printing Chemicals for Post-Processing

Additive manufacturing relies heavily on specific 3d printing chemicals to achieve structural integrity, surface finish, and dimensional accuracy. Whether you are formulating a new polymer composit, utilizing non reactive elements as support structures, or performing 3d print vapor smoothing to eliminate layer lines, the right chemical agents are critical.

Uncured resin, visible layer lines, and stubborn support structures all require chemical intervention. The primary categories of post-processing chemicals include wash solvents like Isopropyl Alcohol, smoothing agents like Acetone and MEK, and etching acids like Hydrochloric Acid and Sulfuric Acid.

3D Print Vapor Smoothing: Techniques and Solvents

3D print vapor smoothing eliminates layer lines by exposing the printed part to solvent vapor. The vapor condenses on the surface, partially dissolving the outer polymer layer to create a smooth, injection-molded appearance. Selecting the correct solvent depends entirely on the filament material.

• Acetone ACS Grade (CAS 67-64-1): The standard for styrene-based filaments. With a boiling point of 56°C, it vaporizes easily at low temperatures.
• Methyl Ethyl Ketone (MEK) (CAS 78-93-3): Boils at 79.6°C. Used for specialized polymers that resist acetone.

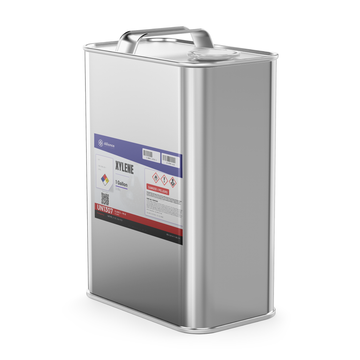

• Toluene (CAS 108-88-3) and Xylene (CAS 1330-20-7): Higher boiling point solvents (110°C and 138°C, respectively) utilized in industrial vapor smoothing chambers for advanced engineering plastics.

Formulating a Polymer Composit: Binders and Solvents

When engineering a composit filament or resin, chemical binders and dispersants ensure even distribution of the reinforcing material within the polymer matrix. Solvents act as carrier fluids during the formulation of liquid slurries or binder jetting agents.

Chemicals such as Hexane Technical Grade (CAS 110-54-3) or Toluene are frequently used to dissolve binder polymers. Once the composite material is extruded or jetted, the solvent evaporates completely, leaving a solid, reinforced structure behind.

Non Reactive Elements in Support Material Removal

Complex geometries require support structures during the printing process. Efficient post-processing relies on dissolving these supports using a fluid that acts as a non reactive element toward the primary build material. This ensures the support dissolves without degrading the main structural plastic.

For example, highly alkaline solutions made from Sodium Hydroxide Flakes (CAS 1310-73-2) or Potassium Hydroxide (KOH) (CAS 1310-58-3) can dissolve specific support polymers while leaving the primary print untouched. For water-soluble supports, a mild acidic bath using 10% Vinegar (CAS 64-19-7) can sometimes assist in breaking down residual binders.

Resin Washing for SLA and DLP Prints

Stereolithography (SLA) and Digital Light Processing (DLP) prints emerge from the printer coated in uncured liquid resin. Removing this excess resin is mandatory before final UV curing.

Isopropyl Alcohol 99.9% ACS Reagent Grade (CAS 67-63-0) is the industry standard for resin washing. Its complete water miscibility and 82°C boiling point allow it to strip excess resin rapidly and evaporate cleanly, leaving a dry surface ready for the curing chamber.

Surface Etching and Metal Print Processing

Industrial additive manufacturing, including metal and ceramic printing, often requires aggressive surface preparation. Before metal prints can be sintered or plated, the surface must be entirely free of oxidation and residual binders.

Hydrochloric Acid 37% (CAS 7647-01-0) and Sulfuric Acid 93% (CAS 7664-93-9) are utilized to etch metal surfaces. These strong acids strip away surface impurities, ensuring proper adhesion for subsequent coatings or thermal treatments.
