Kerosene in Battery Recycling: The Froth Flotation Key

Froth Flotation for Black Mass Separation in Battery Recycling

Froth flotation for black mass separation in battery recycling is the standard industrial method for isolating graphite from valuable cathode metals. When lithium-ion batteries are shredded, the resulting mixture of anode and cathode powders is known as black mass. This mixture contains graphite, lithium, cobalt, nickel, and manganese.

Graphite is naturally hydrophobic (water-repelling), while the cathode metal oxides are hydrophilic (water-attracting). Froth flotation exploits this difference. By agitating the black mass in a water-based slurry and introducing air bubbles, operators can force the hydrophobic graphite to attach to the bubbles and rise to the surface as a froth, leaving the cathode metals in the liquid tailings.

How Kerosene Acts as a Collector for Graphite

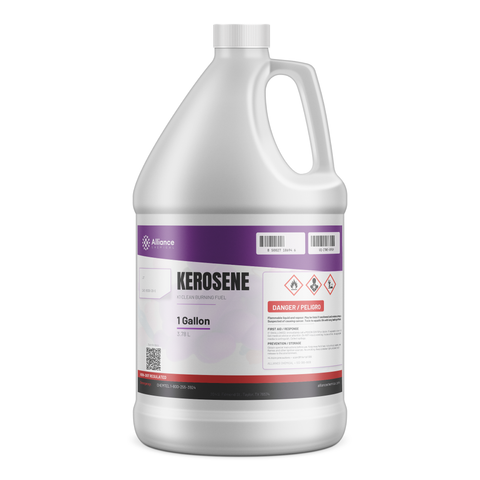

While graphite is naturally hydrophobic, its surface properties in a mixed black mass slurry often require enhancement to achieve high separation efficiency. This is where Kerosene - K1 Clean Burning Fuel functions as a collector.

When added to the flotation cell, kerosene selectively coats the graphite particles. This hydrocarbon layer significantly increases the hydrophobicity of the graphite, ensuring a stronger bond between the particles and the injected air bubbles. The kerosene-coated graphite rises rapidly to the surface, forming a stable froth that is mechanically skimmed off. The transparent, low-viscosity nature of K1 kerosene allows it to disperse efficiently throughout the slurry without causing excessive foaming on its own.

pH Control and Modifiers in the Flotation Cell

The efficiency of froth flotation depends heavily on the pH of the slurry. The pH alters the surface charge (zeta potential) of the particles, dictating how well the kerosene collector binds to the graphite and how effectively the cathode metals remain in suspension.

Operators use industrial acids and bases to maintain the target pH range. Sulfuric Acid 93% Technical Grade is commonly deployed to lower the pH, while Sodium Hydroxide 50% Membrane Grade (Caustic Soda, Lye) or Soda Ash are used to raise it. Precise dosing of these modifiers prevents the unwanted flotation of cathode metals, ensuring a high-purity graphite yield and minimizing the loss of valuable lithium and cobalt in the froth.

Physical Properties of Kerosene K1

Understanding the physical and chemical properties of the collector is necessary for optimizing the flotation circuit and ensuring safe handling. Kerosene K1 is a petroleum distillate with low water solubility, making it ideal for coating particles in an aqueous slurry.

Post-Flotation Processing: Preparing for Hydrometallurgy

Once the graphite is removed via froth flotation, the remaining slurry (tailings) contains the concentrated cathode metals. This material is filtered, dried, and routed to the hydrometallurgical leaching circuit. Here, strong acids dissolve the metal oxides into solution.

Subsequent steps involve precipitation and solvent extraction to isolate individual metals. Reagents like Ammonium Hydroxide 29% Technical Grade are frequently used in these downstream precipitation stages to selectively drop out specific metal hydroxides. Additionally, Aluminum Sulfate Hydrate ACS Grade may be utilized in wastewater treatment processes to coagulate suspended solids before water is recycled back into the flotation cells.

Safety and Handling in Industrial Flotation Facilities

Kerosene is a combustible liquid with a flash point of 38°C (100.4°F). Flotation facilities must implement strict safety protocols, including explosion-proof equipment, proper grounding to prevent static discharge, and adequate ventilation to manage hydrocarbon vapors.

Similarly, the strong acids and bases used for pH control require specialized handling. Sulfuric Acid 93% and Sodium Hydroxide 50% are highly corrosive. Operators must wear appropriate personal protective equipment (PPE) and consult the specific Safety Data Sheets (SDS) for all chemicals used in the flotation circuit.
