AI Hardware Prep: Low-Residue Solvents for Conformal Coatings & Sensors
Table of Contents
Summary
AI hardware fails early from contamination under coatings—oils, ionic residues, and adhesive crud. Learn the 5-step PCB cleaning protocol with exact solvents (IPA 99.9%, n-heptane, acetates), material compatibility data, and validation methods that prevent fish-eyes, connector failures, and optical haze in production environments.
💡 Frequently Asked Questions
Find quick answers to common questions about ai hardware prep: low-residue solvents for conformal coatings & sensors.
Complete PCB cleaning protocols, solvent selection guide, and validation methods for AI hardware manufacturing and prototyping environments. By chemical industry professionals with 20+ years of experience.
AI hardware (GPUs, edge modules, robotic vision systems) experiences premature failure from contamination beneath conformal coatings. Root causes include oils from handling, ionic flux residues, and adhesive contamination from rapid prototyping cycles. This guide provides validated cleaning protocols using high-purity, low-residue solvents (IPA 99.9% ACS, n-heptane, acetone, acetate esters) with proper compatibility data and quality validation methods.
Why AI Hardware Demands Rigorous Surface Preparation
In AI hardware development environments—GPU clusters, edge computing modules, robotic sensor arrays, autonomous vehicle systems—premature component failure frequently traces to inadequate surface preparation before conformal coating application rather than silicon defects or design flaws.
Modern AI systems operate under conditions that amplify microscopic contamination into system-level failures:
- Extreme thermal cycling: GPUs cycling between idle and full computational load 50-100+ times daily, creating differential thermal expansion that stresses coating adhesion interfaces
- High-vibration environments: Edge modules deployed in robotics, UAVs, autonomous vehicles, and mobile platforms subjected to continuous mechanical shock
- High-density packaging: Component spacing under 1mm creating capillary channels that concentrate and retain contamination
- Rapid iteration cycles: Prototype hardware undergoing multiple rework/reflow cycles, accumulating flux residues, adhesive contamination, and handling oils
Conformal coating application requires pristine surface conditions—contamination at the molecular level causes dewetting and adhesion failure
Conformal coatings (acrylic, urethane, silicone, parylene) provide critical environmental protection but exhibit zero tolerance for surface contamination. Silicone oils cause coating dewetting and fish-eye defects. Flux residues establish ionic pathways enabling electrochemical migration under bias. Trace denaturants in commercial-grade alcohols poison molecular adhesion.
⚠️ Three Critical Failure Modes in Production AI Hardware
- Fish-eye defects in conformal coatings: Silicone oils from handling, mold release agents, or contaminated compressed air cause coating dewetting, creating thin spots or bare substrate areas that permit moisture ingress and accelerated corrosion
- Intermittent electrical failures: Hygroscopic flux residues absorb atmospheric moisture and create conductive paths under electrical stress, causing intermittent failures that disappear during environmental testing (making root cause analysis extremely difficult)
- Optical system degradation: Incorrect solvent selection attacks optical-grade plastics, inducing permanent stress-cracking, crazing, or surface haziness in vision system components
Failure mode analysis based on IPC-TR-476A and JEDEC JESD22-A120A environmental reliability standards for electronics assemblies.
The 5-Step PCB Preparation Protocol
This systematic cleaning sequence ensures reliable conformal coating adhesion and long-term environmental protection. Protocol applicable to initial assembly preparation and rework/repair scenarios.
Step 1: Gross Contamination Removal
Objective: Remove bulk contaminants including machining oils, adhesive residues, flux over-spray, and handling contamination before detail cleaning
Recommended solvents:
- n-Heptane 99% ACS or Technical Grade — Excellent solvency for pressure-sensitive adhesives, acrylic adhesive residues, and cable tie residues without attacking most engineering plastics (ABS, polycarbonate, acrylic). Low reactivity with elastomeric gaskets and O-rings.
- Ethyl Acetate ACS or Technical Grade — Faster evaporation rate than heptane (b.p. 77°C vs 98°C), effective for machining oils and general degreasing. Moderate polarity provides good mixed-contamination solvency.
Application method: Apply solvent to lint-free, ESD-safe wipes (polyester or cellulose-based). Use unidirectional wiping motion with moderate pressure. Rotate wipe to clean surface frequently—never reuse contaminated wipe area. Change wipes every 10-15 cm² of board surface cleaned.
Solvent volume: Approximately 2-3 mL per 100 cm² board area for typical contamination loads
Step 2: Flux/Rosin Detail Work
Objective: Dissolve activated and no-clean flux residues, particularly heat-polymerized rosin that resists general solvents
Recommended solvents:
- Isopropyl Acetate 99.98% ACS or Technical Grade — Superior flux solubility compared to IPA with lower toxicity and odor than MEK. Effective on rosin-based and synthetic-activated fluxes.
- MEK (Methyl Ethyl Ketone) ACS or Technical Grade — Reserve for heat-polymerized flux and varnish removal. Use sparingly due to higher health hazards and plastic compatibility concerns.
Application method: Spot application using cotton swabs, precision applicators, or small brushes (ESD-safe nylon bristles). Limit contact time to under 30 seconds on plastic components. Avoid pooling solvent on board surface.
Critical note: Always follow aggressive flux solvents with IPA 99.9% finishing wipe to remove solvent residues and dissolved flux
Detail cleaning removes heat-polymerized flux residues that resist general solvents—critical for coating adhesion
Step 3: Ionic Contamination Rinse (Conditional)
Objective: Remove ionic contaminants (chloride salts, weak acids, activator residues) that enable electrochemical migration and dendrite formation under bias
Recommended approach: Deionized Water rinse if board design permits (no unsealed components, no water-sensitive materials)
Application method: Light spray application or wipe with DI water-saturated lint-free wipes. Follow immediately with complete drying using warm (40-50°C) air, nitrogen blow-off, or vacuum chamber (if component-compatible).
Quality specification: DI water conductivity must be <10 μS/cm (ASTM Type II minimum, Type I preferred for critical applications)
Critical warning: Incomplete drying before proceeding to Step 4 will cause water entrapment beneath final coating, leading to delamination and corrosion. Verify dry-to-touch plus additional 5-10 minute drying period.
Ionic contamination testing per IPC-TM-650 2.3.28 (Resistivity of Solvent Extract method) recommended for production validation
Step 4: Final Precision Wipe
Objective: Remove any remaining residues and establish pristine surface for conformal coating adhesion
Required solvent: Isopropyl Alcohol 99.9% ACS Reagent Grade — High purity essential; commercial 99% grades may contain trace oils. ACS reagent grade guarantees <0.1% water, no hydrocarbon residues.
Two-wipe technique (mandatory):
- Wet wipe: Saturate lint-free wipe with IPA 99.9%, apply with moderate pressure using unidirectional strokes. This step dissolves and lifts remaining residues.
- Immediate dry wipe: Within 5-10 seconds, follow with fresh dry lint-free wipe using same motion. This removes IPA before evaporation can re-deposit dissolved contaminants.
Critical timing: Conformal coating should be applied within 2-4 hours after final cleaning. Prolonged exposure to ambient air allows moisture adsorption and particulate recontamination.
Environmental controls: Perform final cleaning and coating in controlled environment: 40-60% RH, 20-25°C, ISO Class 7 cleanroom or equivalent laminar flow hood preferred
Step 5: Surface Validation
Objective: Verify cleaning effectiveness before committing to conformal coating application
Water-break test (30 seconds, qualitative): Place 3-5 drops of DI water on cleaned surface. Water should form continuous, uniform film without beading or rapid break-up. Beading indicates residual hydrophobic contamination (oils, silicones). Break-up indicates ionic residues.
Tape-pull adhesion test (5 minutes, semi-quantitative): Apply 2cm × 2cm test patch of production conformal coating to dedicated test area. Cure per manufacturer specifications. Apply standard pressure-sensitive tape (Scotch Magic Tape or equivalent), burnish firmly, then remove with 180° pull at moderate speed. Coating should remain fully adhered with no lifting, cracking, or delamination.
ROSE testing (optional, quantitative): Resistivity of Solvent Extract testing per IPC-TM-650 2.3.28 quantifies ionic contamination. Target: >2 MΩ·cm equivalent NaCl contamination <1.56 μg/cm². Recommended for production environments where statistical process control is required.
Documentation requirements:
- Solvent lot numbers and purity certificates
- Ambient temperature and relative humidity during cleaning/coating
- Time elapsed between final cleaning and coating application
- Validation test results and pass/fail criteria
Validation protocols based on IPC-A-610 Class 3 acceptance criteria and NASA-STD-8739.1 workmanship standards
Solvent Selection Decision Tree
Use this diagnostic framework to select optimal cleaning solvents based on contamination type and substrate compatibility constraints:
🎯 Quick Selection Guide
Need fastest, lowest-residue final wipe?
→ IPA 99.9% ACS Reagent Grade
Heavy oils or adhesive residues near elastomer seals?
→ n-Heptane 99% ACS or Technical for cleaning → finish with IPA 99.9%
Rosin/flux blends or acrylic adhesive residues?
→ Ethyl Acetate ACS or Isopropyl Acetate ACS → finish with IPA 99.9%
Stubborn heat-polymerized flux or varnish?
→ MEK ACS (use sparingly, short contact time) → finish with IPA 99.9%
Ionic salts or activator residues present?
→ DI Water rinse → dry completely → IPA 99.9% finish
Glass or metal optics (not coated plastics)?
→ Acetone ACS Grade for aggressive cleaning, or IPA 99.9% if plastic substrate unknown
Universal protocol: Always finish with IPA 99.9% ACS after any aggressive solvent to remove residues and dissolved contamination
Proper solvent selection and storage are critical—contamination from incorrect storage negates cleaning efforts
AI Lab & Prototyping Essential Solvents
Beyond PCB cleaning, AI development laboratories require comprehensive solvent coverage for diverse applications across benchtop work, optics, 3D printing, and rapid prototyping workflows.
Benchtop & General Laboratory
- IPA 70% USP — Daily disinfection, general wipe-downs, non-critical cleaning. USP grade ensures pharmaceutical purity for biocompatibility where required.
- IPA 91% — Intermediate purity for general electronics cleaning where absolute residue-free performance not required
- IPA 99% — Standard electronics cleaning, sensor wipe-downs, connector maintenance
- IPA 99.9% ACS Reagent — Pre-coating final wipes, critical optics cleaning, precision applications
- Deionized Water — Final rinses, ionic contamination removal, sensor calibration solutions
Electronics & Electrical Connectors
- IPA 99.9% ACS — Primary connector cleaning, contact burnishing residue removal, zero-residue performance
- n-Heptane 99% ACS — Adhesive residue removal from cable assemblies, connector housings, strain relief boots without elastomer damage
Optical Systems & Vision Sensors
- IPA 99-99.9% — Safe for most optical materials including BK7 glass, fused silica, most optical-grade plastics (spot test unknown materials)
- Acetone ACS Grade — Glass and metal optics ONLY; aggressive removal of dried oils, adhesives, coating residues. Never use on coated optics without manufacturer approval.
- Critical note: Many machine vision camera lenses use acrylic or polycarbonate elements that are damaged by acetone. Default to IPA 99.9% unless confirmed glass/metal construction.
SLA/DLP resin prints require thorough solvent cleaning to remove uncured resin before final curing
3D Printing Post-Processing
- IPA 99-99.9% — Standard post-cure cleaning for SLA/DLP resin prints. Removes uncured resin from surface and fine details. Two-stage wash (dirty bath → clean bath) recommended.
- Ethyl Acetate ACS — ABS support material cleanup, acetone-alternative for smoothing (always spot test—some ABS formulations sensitive). Gentler vapor polishing than acetone.
- Propylene Glycol USP — Slower-evaporating, less aggressive option for hand-contact resin cleaning applications. Reduces inhalation exposure compared to IPA. Follow with IPA rinse.
Properly cleaned resin parts show no surface tackiness and exhibit optimal mechanical properties after final UV curing
Featured Laboratory Chemicals
Isopropyl Alcohol (IPA)
The workhorse solvent for electronics cleaning, optics maintenance, and general laboratory use. Multiple purity grades available for application-specific requirements.
- 70% USP Grade — Disinfection, general cleaning
- 91% Grade — Standard electronics cleaning
- 99% Grade — Critical electronics cleaning
- 99.9% ACS Reagent — Pre-coating finishing
Acetone
Aggressive ketone solvent for glass/metal surface preparation and stubborn organic residue removal. Not compatible with most plastics.
- ACS Reagent Grade — Laboratory use
- Technical Grade — Industrial applications

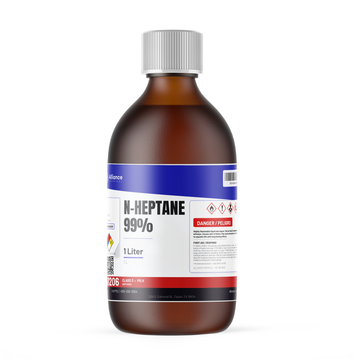

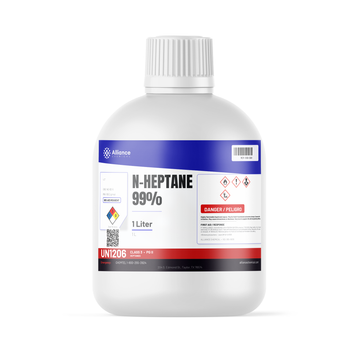

n-Heptane
Alkane solvent ideal for adhesive removal near sensitive plastics and elastomers. Minimal reactivity with engineering thermoplastics.
- 99% ACS Grade — Critical applications
- 99% Technical Grade — General use
Acetate Esters
Moderate-polarity solvents with excellent flux solubility and better plastic compatibility than ketones. Lower toxicity than MEK.

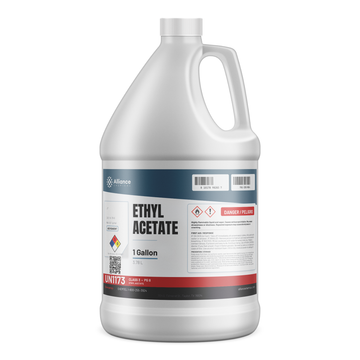

- Ethyl Acetate ACS — Lab grade
- Ethyl Acetate Technical — Industrial grade
- Isopropyl Acetate 99.98% ACS — Premium flux remover
- Isopropyl Acetate Technical — Standard flux removal

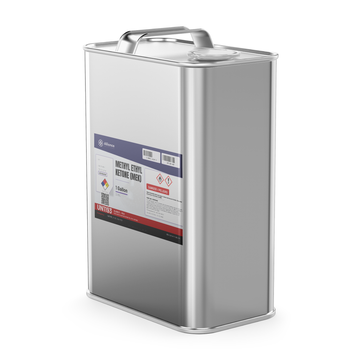

MEK (Methyl Ethyl Ketone)
Powerful ketone solvent for stubborn varnish and heat-polymerized flux. Use with caution due to health hazards and plastic attack.
- ACS Reagent Grade — Controlled purity
- Technical Grade — Industrial applications
Propylene Glycol
Low-volatility, low-toxicity alternative for gentle cleaning applications. Useful for reducing inhalation exposure in enclosed workspaces.
- USP Grade — Pharmaceutical purity
- Technical Grade — Industrial use
- Inhibited ACS — Corrosion-inhibited formulation
Deionized Water
Essential for ionic contamination removal and final rinses. Quality specification critical—conductivity must be <10 μS/cm.
- Type II Deionized Water — General laboratory use
Critical Note: For final pre-coating preparation, always finish with IPA 99.9% ACS Reagent Grade after any aggressive solvent to ensure zero-residue surface condition. Never use denatured alcohols for final wipes—trace denaturants destroy coating adhesion.
Material Compatibility Reference
Solvent compatibility varies significantly by substrate material. This reference table provides compatibility guidance based on industrial testing and published chemical resistance data.
| Substrate Material | Compatible Solvents | Use With Caution / Avoid |
|---|---|---|
| FR-4 Laminate & Soldermask | IPA (all grades), n-Heptane, Ethyl Acetate, Isopropyl Acetate | MEK (limit contact time to <30 sec, may attack some soldermask formulations) |
| ABS Housings & Enclosures | IPA (spot test), n-Heptane (brief contact) | Avoid: Acetone (immediate crazing), MEK (stress cracking), some esters (test first) |
| Polycarbonate (PC) | IPA 70-99% (light use), n-Heptane (brief contact) | Avoid: Acetone (immediate crazing), MEK (stress cracking), acetate esters (cracking risk) |
| Acrylic (PMMA) Lenses | IPA 70-91% (light pressure), DI Water, mild detergents | Avoid: IPA >95% (stress cracking over time), Acetone (immediate damage), all esters |
| Glass & Metal Fixtures | IPA (all grades), Acetone, MEK, all acetate esters, n-Heptane | None—glass and metals are chemically resistant to common solvents |
| Silicone Elastomers | IPA (all grades), n-Heptane (brief contact) | Caution: MEK and acetone cause swelling; limit contact time to <10 seconds |
| Nitrile (NBR) Gaskets | IPA (all grades), DI Water | Caution: Acetate esters, MEK, acetone cause swelling; n-Heptane acceptable for brief contact |
| Viton (FKM) Seals | IPA (all grades), acetone, MEK, acetate esters, n-Heptane | Excellent chemical resistance—compatible with most common solvents |
Compatibility data compiled from manufacturer technical data sheets, ASTM D543 immersion testing, and field experience. Always perform spot testing on unknown materials—formulation variations exist within material classes.
⚠️ Critical Compatibility Rules
- Never finish with denatured alcohols (Formula 3A, 3C, SDA formulations): Denaturing additives (methanol, methyl isobutyl ketone, denatonium benzoate) leave trace residues that poison conformal coating adhesion. Always specify pure IPA 99.9% ACS Reagent Grade for final wipes.
- Never leave citrus-based cleaners (d-limonene, terpenes) as final surface: Excellent for heavy degreasing but leave oily terpene residues. Always chase with IPA 99.9% finish.
- Never trap moisture beneath coatings: After any DI water rinse step, ensure complete drying (warm air, nitrogen blow-off, vacuum dessicator) before applying solvent finish or conformal coating. Trapped moisture causes coating disbondment and substrate corrosion.
Quality Assurance & Surface Validation Methods
Validation testing confirms cleaning effectiveness before committing to conformal coating application. These methods range from simple visual/tactile tests to quantitative analytical techniques.
Water-Break Test (30 seconds, qualitative)
Place 3-5 drops of deionized water on cleaned surface. Observe wetting behavior:
- Pass: Water forms continuous, uniform film without beading. Film remains intact for >10 seconds.
- Fail: Water beads up (indicates residual oils, silicones, or hydrophobic contamination) OR breaks into discrete droplets immediately (indicates ionic contamination or high surface energy contamination)
Simple, fast, zero equipment cost. Excellent for process monitoring and spot-checking effectiveness.
Tape-Pull Adhesion Test (5 minutes, semi-quantitative)
Apply 2cm × 2cm test patch of production conformal coating to dedicated test area on board or test coupon. Cure per manufacturer specification (thermal or UV). Apply pressure-sensitive tape (3M Scotch Magic Tape #810 or equivalent), burnish firmly with thumbnail, then remove with rapid 180° pull.
- Pass: Coating remains 100% adhered with no lifting, cracking, or delamination. Clean removal of tape.
- Fail: Any coating lift-off, cohesive failure within coating, or adhesive failure at coating-substrate interface
Provides direct assessment of coating adhesion on actual substrate. Destructive to test area but provides high confidence.
ROSE Testing (20 minutes, quantitative)
Resistivity of Solvent Extract testing per IPC-TM-650 Method 2.3.28 quantifies ionic contamination. Measures conductivity of isopropanol-water extract that has been in contact with cleaned surface.
- Target specification: >2 MΩ·cm (equivalent to <1.56 μg/cm² NaCl contamination)
- IPC-A-610 Class 3 requirement: >2 MΩ·cm
- NASA-STD-8739.1 requirement: >10 MΩ·cm for high-reliability applications
Requires ROSE testing equipment ($2,000-$10,000 depending on automation level). Ideal for production environments requiring statistical process control and traceability.
ROSE testing methodology per IPC-TM-650 2.3.28. Acceptance criteria from IPC-A-610 Rev H and NASA-STD-8739.1C workmanship standards.
Safety Requirements & Handling Protocols
Engineering controls (mandatory):
- Ventilation: Local exhaust ventilation or laboratory fume hood for all solvent operations. Minimum face velocity 100 FPM for fume hoods. Acetone, MEK, and acetate esters require active ventilation—natural ventilation insufficient.
- Fire safety: Flammable liquid storage cabinets (NFPA 30 compliant) for quantities >10 gallons. Grounded metal containers for dispensing/use. No ignition sources within 10 ft of solvent operations.
- ESD protection: ESD-safe wipes, mats, and wrist straps when working on assembled electronics or ESD-sensitive components
Personal protective equipment (required):
- Hand protection: Nitrile gloves minimum. Check glove compatibility for MEK and acetate esters (some nitrile formulations have limited resistance—consult glove manufacturer permeation data)
- Eye protection: Safety glasses with side shields minimum; chemical splash goggles preferred for large-volume operations
- Respiratory protection: Not typically required with proper ventilation controls. If ventilation inadequate, use organic vapor cartridge respirator (NIOSH-approved)
- Skin protection: Laboratory coat or chemical-resistant apron for spill protection
Administrative controls:
- Safety Data Sheets (SDS) must be accessible at point of use—29 CFR 1910.1200 requirement
- Chemical inventory tracking and segregation—keep oxidizers (peroxides, chlorates) physically separated from solvents
- Spill response equipment and training
- Proper waste disposal per local/state/federal regulations
Frequently Asked Questions
Q: Can I use 70% IPA for everything to simplify inventory?
A: No. While 70% IPA is excellent for disinfection and general bench cleaning, the 30% water content leaves ionic residues that cause long-term reliability problems beneath conformal coatings. The water also reduces cleaning effectiveness for organic contaminants. For pre-coating final cleaning, 99-99.9% IPA is mandatory. The incremental cost (~$2-3 per liter difference) is trivial compared to field failure costs ($500-$50,000+ per incident).
Q: Are acetate esters truly safe on plastics, or is this marketing?
A: Acetate esters are safer than acetone or MEK on most thermoplastics but not universally compatible. Ethyl acetate and isopropyl acetate can cause stress cracking or crazing in polycarbonate, some acrylic formulations, and certain ABS grades—particularly when combined with mechanical stress or prolonged contact time. The "safer" designation is relative to ketones, not absolute. Always spot-test unknown plastics in inconspicuous area. Limit contact time to <30 seconds on suspect materials. For critical plastic components, n-heptane or IPA 99% are lower-risk options despite reduced cleaning power.
Q: When should I choose n-heptane instead of acetone for adhesive removal?
A: Choose n-heptane when:
- Working near elastomeric seals (silicone, nitrile, EPDM gaskets) that swell in ketones
- Cleaning plastic housings (ABS, polycarbonate, acrylic) where acetone causes immediate crazing
- Removing pressure-sensitive adhesive residues, acrylic adhesives, or label adhesives
- Cleaning cable assemblies with PVC or other plasticized insulation that softens in polar solvents
Choose acetone when:
- Cleaning glass or metal surfaces only
- Maximum cleaning power required for cured epoxies, polyurethanes, or varnishes
- Working on surfaces where material compatibility confirmed through testing
N-heptane is the "safe" default for adhesive removal; acetone is the "aggressive" option for stubborn residues on compatible substrates.
Q: How do I know if my cleaning process is actually working or just redistributing contamination?
A: Implement three-tier validation:
Tier 1 (Every batch): Water-break test on 3-5 random boards per batch. Takes 30 seconds, catches oil contamination failures immediately.
Tier 2 (Weekly or per production run): Tape-pull adhesion test on coated test coupons processed alongside production boards. Catches coating adhesion problems before field deployment.
Tier 3 (Monthly or if Tier 1/2 failures occur): Track field failure rates and failure mode analysis. If seeing delamination, fish-eyes, or corrosion-related failures, cleaning process requires revision.
If all three tiers show passing results consistently, process is working. If Tier 1 or 2 show failures, contamination source is still present (common causes: contaminated wipes, degraded solvent purity, inadequate wipe frequency, insufficient drying after water rinse).
Q: What's the real shelf life of these solvents, and how do I know when they're degraded?
A: Unopened, properly stored (sealed, cool, dark, away from oxidizers):
- IPA, acetone, heptane, acetate esters: 2-3 years minimum. Primary degradation mechanism is moisture absorption (IPA) or oxidation (acetate esters). Check manufacturer lot certification.
- DI water: Indefinite if sealed. Once opened, conductivity increases over time due to CO₂ absorption. Test conductivity before critical use; discard if >10 μS/cm.
Opened containers: IPA absorbs moisture rapidly once opened, reducing purity from 99.9% to ~97-98% over 6-12 months. For critical pre-coating work, replace opened IPA 99.9% bottles after 6 months. Standard use (electronics cleaning, general wipe-downs) can continue using opened bottles for 12-18 months.
Degradation indicators: Yellowing/discoloration (acetate esters, propylene glycol), particulate contamination, purity reduction confirmed by refractometer testing (IPA), or failed water-break tests after cleaning (any solvent).
Cost-benefit: IPA 99.9% costs ~$15-20/liter. Replacing opened bottles every 6 months for critical work adds ~$30-40/year—trivial compared to single field failure ($500-$50,000+).
📞 Need Application-Specific Guidance?
Every manufacturing environment has unique contamination challenges. Our technical team provides free consultation on:
- Solvent selection for specific substrates and contamination types
- Process optimization and troubleshooting (coating delamination, fish-eye defects, adhesion failures)
- Material compatibility verification and testing recommendations
- Safety and regulatory compliance (OSHA, EPA, DOT)
- Quality assurance protocol development
Direct Technical Line: (512) 365-6838
Monday-Friday, 8:00 AM - 5:00 PM CT. Technical inquiries answered within one business day.
Ready to Get Started?
Explore our selection of AI Hardware PCB Cleaning Conformal Coating Electronics Manufacturing Solvents IPA Technical Guide Hardware Prototyping Quality Control Manufacturing Isopropyl Alcohol Flux Removal Circuit Boards products.
Shop Now
