High-Purity Chemicals in Semiconductor Fabrication: How Sulfuric Acid, Nitric Acid, and Ammonium Hydroxide Power Advanced Electronics

1. Introduction

When you think of cutting-edge smartphones, high-speed processors, quantum computing research, or even the global push for 5G, it all comes down to one thing: semiconductors. These tiny chips power everything from everyday consumer devices to sophisticated military and space technologies. Manufacturing such advanced microelectronics requires an intricate dance of physics, materials science, and – most importantly – high-purity chemicals.

Every step of semiconductor fabrication demands a near-obsessive level of cleanliness and chemical purity. Traces of metal ions or microscopic contaminants can render an entire wafer — costing thousands of dollars each — completely unusable. To prevent these costly defects, the industry relies on top-tier chemicals like sulfuric acid, nitric acid, and ammonium hydroxide during chip fabrication, etching, cleaning, doping, and other critical steps. Even beyond these, a wide range of specialized materials (solvents, etchants, bases, oxidizers, and more) have become the foundation of the modern microelectronics industry.

This in-depth blog aims to demystify the importance of high-purity chemicals—particularly sulfuric acid, nitric acid, and ammonium hydroxide—in wafer processing and chip fabrication. By the end, you’ll grasp not only why these substances are indispensable to the world’s most advanced manufacturing workflows but also how to handle them responsibly, source them reliably, and integrate them into environmentally sound processes.

2. The Global Semiconductor Industry: Why High-Purity Matters

2.1 The Ubiquity of Semiconductors in Modern Life

The digital era is built on semiconductors. Almost every electronic gadget—phones, laptops, data center servers, IoT sensors, automotive control systems—contains one or more integrated circuits (ICs) fabricated on a silicon wafer. The global push toward digital transformation, AI, machine learning, and cloud computing has only amplified the significance of these chips.

As a direct consequence, semiconductor manufacturers or “fabs” are under constant pressure to shrink transistor sizes, improve energy efficiency, and reduce production costs. Achieving these objectives requires not just advanced lithography equipment but also the highest possible yield—a term referencing how many working chips can be derived from a single wafer. Yield is intimately tied to chemical purity and process cleanliness; even a single invisible particle in the wrong place can sabotage a complex integrated circuit featuring billions of transistors.

2.2 Contamination: The Invisible Enemy

Contamination is the bane of semiconductor fabs. Particles, metal ions, or organic residues can adhere to the wafer surface during processing. When these contaminants occur at or near transistor formation sites, they can disrupt conduction paths, produce short circuits, or degrade device performance. Because many manufacturing steps occur on the nanometer scale, even a trace impurity can have outsized consequences.

Typical contamination sources include:

• Improper handling of wafers or equipment
• Sub-standard chemicals not meeting “electronic grade” or “ultra-pure” specifications
• Residues left over from previous process steps
• Ambient air (dust, airborne molecular contaminants, VOCs)

2.3 Profit Margins & Competitive Pressures

Semiconductor manufacturing is capital-intensive. Building a new fabrication plant can cost billions of dollars and require years of planning. With such immense investment on the line, maximizing yield is essential to profitability. Minimal defects translate to greater wafer yields and, in turn, higher profit margins. This is where high-purity chemicals and ultra-clean processes make a direct impact on the bottom line.

Fabs typically manage multiple chemical supply lines for different cleaning and etching steps. These substances must consistently meet or exceed stringent specifications or risk introducing costly production errors. That’s why reputable chemical suppliers capable of delivering in-spec and on-time shipments have become strategic partners in the electronics ecosystem.

3. The Vital Role of Sulfuric Acid, Nitric Acid & Ammonium Hydroxide

A typical semiconductor fab uses hundreds of different chemical formulations. Still, certain high-purity acids and bases stand out for their universal importance. Three that are particularly indispensable to wafer processing and etching are sulfuric acid (H₂SO₄), nitric acid (HNO₃), and ammonium hydroxide (NH₄OH). Let’s dive deeper into each:

3.1 Sulfuric Acid

3.1.1 Overview & Properties

Sulfuric acid (H₂SO₄) is perhaps one of the most widely produced industrial chemicals. Known for its strong acidity and oxidizing properties, it finds application in countless manufacturing sectors, from fertilizers and petroleum refining to battery production and, indeed, semiconductors. In microelectronics, sulfuric acid often forms the basis of key cleaning solutions (e.g., piranha etch), removing organic contaminants from wafer surfaces.

3.1.2 Role in Semiconductor Fabrication

• Removing Resist Residues: After photolithography processes, photoresists or other organic layers may cling to the wafer. A sulfuric acid-based solution dissolves these remnants, preparing the wafer for subsequent steps.
• Piranha Solutions (H₂SO₄ + H₂O₂): This potent mixture effectively “strips” organic materials from wafer surfaces, leaving them extremely clean. It’s widely used as a pre-diffusion clean, ensuring minimal organic contamination in doping or thermal oxidation steps.
• Surface Conditioning: Through careful concentration control, sulfuric acid can help modify the wafer surface’s hydrophilicity, improving wetting characteristics for subsequent chemical treatments.

3.1.3 Quality & Handling Considerations

The sulfuric acid used in semiconductor fabs typically must meet Electronic Grade or higher (often “ULSI Grade,” or Ultra-Large-Scale Integration Grade). This ensures extremely low levels of metal ions (like Fe, Cu, Ca, Mg, etc.) that might cause doping anomalies or galvanic corrosion. Handling concentrated sulfuric acid also demands meticulous safety measures, given its highly corrosive nature and exothermic reaction with water.

Alliance Chemical offers an extensive range of Sulfuric Acid products, including 93% Technical Grade, ACS Reagent Grade, and more. For advanced microelectronics applications, always consult our team about your purity requirements and any specialized formulations available.

3.2 Nitric Acid

3.2.1 Overview & Properties

Nitric acid (HNO₃) is another cornerstone acid in semiconductor processing. It’s a powerful oxidizer, capable of dissolving metals and organic substances, and can be a key ingredient in certain etchants. Concentrated nitric acid is highly corrosive, fuming, and can release toxic nitrogen dioxide (NO₂) fumes upon decomposition or reaction.

3.2.2 Use Cases in Wafer Processing & Etching

• Oxidizing & Surface Etches: Nitric acid-based mixtures can selectively remove thin layers from the wafer, preparing surfaces for doping or metal deposition.
• Metal Etching & Cleaning: During processes that involve aluminum, copper, or other metals, nitric acid can help remove unwanted residues or oxide layers.
• Mixed Acid Solutions: Combinations of nitric acid, sulfuric acid, hydrofluoric acid (HF), and water form specialized etchants for cleaning and planarizing wafer surfaces.

3.2.3 Purity Requirements & Handling

Semiconductor-grade nitric acid must be free from metallic and particulate contaminants, typically achieving “Electronic Grade” or better. Because nitric acid can degrade over time (especially if exposed to heat or light), it often requires specialized storage conditions, such as refrigeration or opaque containers. Fabs may also incorporate vacuum distillation or advanced filtration stages to maintain purity.

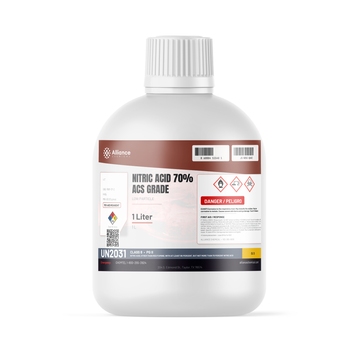

Looking for high-purity nitric acid? Visit our Nitric Acid Collection at Alliance Chemical, where you’ll find 70% ACS Grade (Low Particle) and other formulations suited for advanced electronics manufacturing.

3.3 Ammonium Hydroxide (Aqueous Ammonia)

3.3.1 Overview & Properties

Ammonium hydroxide (NH₄OH), also known as aqueous ammonia, is a basic solution formed by dissolving ammonia gas in water. It can behave as a mild etchant or a strong cleaning agent, depending on concentration and temperature. In the semiconductor context, ammonium hydroxide solutions are commonly combined with hydrogen peroxide to create the well-known “SC1” cleaning solution (Standard Clean 1).

3.3.2 Applications in Semiconductor Manufacturing

• SC1 Cleaning (NH₄OH + H₂O₂): This mixture effectively removes organic residues, particles, and certain metallic contaminants from the wafer surface without excessive etching of silicon.
• pH Control & Neutralization: In some steps, controlling the solution’s alkalinity is crucial for ensuring uniform etch rates or preventing acid damage to sensitive layers.
• Resist Stripping & Particle Removal: Ammonium hydroxide’s alkaline nature helps dislodge particles that might adhere strongly to the wafer surface.

3.3.3 Purity & Storage

Aqueous ammonia in microelectronics typically has stringent specifications for heavy metal content and particulate matter, matching “Electronics Grade” or “VLSI Grade” quality. Proper venting is essential since ammonia can easily volatilize, leading to pressure buildup in containers. Fabs often rely on specialized piping and chemical dispensing tools to handle large volumes safely.

For high-quality ammonia solutions and other bases, check out Ammonia Products or Hydroxides from Alliance Chemical. We ensure minimal contaminants and can guide you on proper storage and transport options.

4. Wafer Processing & Etching Explained

Semiconductor manufacturing is famously complex, involving hundreds of separate steps from raw silicon to completed integrated circuits. However, the fundamental concept is relatively straightforward: build layers of conductive, semi-conductive, and insulating materials in precise patterns on a silicon wafer. Each step demands exact chemical processes—especially when you get to etching and cleaning.

4.1 Photolithography & Pattern Transfer

The digital “blueprint” for each circuit layer is transferred onto the wafer using a process called photolithography. A photoresist is spun onto the wafer, exposed to ultraviolet (UV) light through a mask containing the circuit pattern, and then “developed.” This leaves the desired pattern in place, typically in photoresist regions that are either softened or hardened by the UV light.

4.2 Etching: Removing Unwanted Material

After photolithography, the wafer goes through an etch process to remove selected areas of material, revealing the pattern. Etching can be either wet or dry (plasma-based), but many steps still involve chemical (wet) etchants like nitric or sulfuric acid solutions, or bases like ammonium hydroxide. By carefully controlling temperature, time, pH, and acid/base concentration, the fab can dissolve the intended layer without damaging underlying structures.

Key Types of Wet Etching Solutions:

• Acidic Etchants: Mixtures of HF, HNO₃, and H₂SO₄ for removing oxides, nitrides, or metal films.
• Alkaline Etchants: Solutions of ammonium hydroxide or tetramethylammonium hydroxide (TMAH), often used to etch silicon selectively.
• Oxidizing Solutions: Adding hydrogen peroxide or other oxidizers intensifies the etch rate for organic residues or certain metals.

4.3 Post-Etch Cleaning & Residue Removal

Etching often leaves behind byproducts—residues, metals, or broken polymer chains from the photoresist. To maintain top-tier yield, each wafer is thoroughly cleaned before the next step. This is where piranha solutions (H₂SO₄ + H₂O₂) or standard cleans (SC1/SC2) featuring ammonium hydroxide and hydrogen peroxide become invaluable. Trace contamination at any stage can escalate into device-killing defects later in the process.

4.4 Rinse & Dry

After cleaning or etching, wafers must be carefully rinsed—often with highly purified (ultrapure) water—and dried in a controlled environment. Sometimes specialized rinse aids or surfactants are used to reduce surface tension and expedite water removal. A final spin-dry or isopropyl alcohol (IPA) vapor dry can ensure minimal watermarks or streaks, which can cause surface doping issues or layer adhesion problems in subsequent steps.

5. Critical Steps in Semiconductor Manufacturing

While chemical etching and cleaning are central to wafer preparation, they only scratch the surface of modern semiconductor workflows. Below is a more comprehensive snapshot of key phases, highlighting how high-purity chemicals interplay with each stage:

5.1 Crystal Growth & Wafer Slicing

• Monocrystalline Silicon Growth: Fabrication typically starts with a silicon ingot grown from pure polycrystalline silicon in a high-temperature furnace. This ingot is sliced into wafers using diamond wire saws or other advanced cutting methods.
• Wafer Polishing: Polishing slurries—often containing colloidal silica and specialized additives—help achieve the mirror-smooth surfaces necessary for sub-10nm node technologies. Minor chemical contaminants in these slurries can create micro-scratches or doping variations, so purity is paramount.

5.2 Thermal Oxidation

• Oxidizing Furnace: Wafers are placed in high-temperature furnaces with an oxygen-rich or steam atmosphere to form a uniform silicon dioxide (SiO₂) layer. This insulating layer can be grown to exact thicknesses on the wafer surface.
• Pre-Furnace Clean: Before oxidation, wafers are typically cleaned with sulfuric acid/hydrogen peroxide or ammonium hydroxide-based SC1 to eliminate organics and particulates, ensuring uniform oxide growth.

5.3 Doping & Diffusion

• Ion Implantation: To create p-type or n-type regions, certain dopant ions (boron, phosphorus, arsenic) are implanted at high velocity. Post-implant, wafers may require an acid or base rinse to remove surface contamination.
• Drive-In Diffusion: High-temperature treatments cause dopants to diffuse into the silicon lattice. Any contamination can disrupt the doping profile, so pristine wafer surfaces are essential before and after diffusion steps.

5.4 Deposition

• Chemical Vapor Deposition (CVD): Thin films of polysilicon, silicon nitride, or metal oxides are deposited via reaction of gaseous precursors. Contaminants in the gas lines or “dirty” chamber surfaces can lead to film non-uniformities or doping anomalies.
• Physical Vapor Deposition (PVD): Sputtering or evaporation methods deposit metals like aluminum, copper, or tungsten. Post-deposition cleaning with nitric acid can remove unwanted oxidation or residue.

5.5 Metallization & Interconnects

• Advanced Metallization: Copper or tungsten lines connect transistors, enabling signal routing within the chip. Certain acid or base treatments (including nitric, sulfuric, or ammonia solutions) help remove oxide layers on metals, ensuring robust adhesion for subsequent layers.
• Planarization: Chemical Mechanical Planarization (CMP) polishes the wafer surface to a flat plane. Slurries containing silica or alumina particles, plus controlling agents, must be ultra-pure to avoid scratching or doping the surface unintentionally.

5.6 Final Testing & Packaging

• Wafer Testing: Before dicing into individual chips, each die is tested electrically. Environmental contaminants or residual acid can degrade contact pads, so post-fabrication cleaning is again crucial.
• Packaging & Encapsulation: Once diced, each chip is packaged. While not as chemically intensive as wafer processing, certain cleaning agents (like isopropyl alcohol or specialized solvents) are used to ensure pristine surfaces for bonding wires and encapsulating resins.

6. Chemical Purity Levels & Standards

The semiconductor industry uses an array of grading systems to denote chemical purity. Terms like “ACS Grade,” “Electronic Grade,” “VLSI Grade,” “ULSI Grade,” and “PPB-level purity” are common. Let’s break down what these generally mean:

6.1 ACS Grade & Reagent Grade

ACS stands for the American Chemical Society. “ACS Grade” or “ACS Reagent Grade” chemicals meet or exceed purity standards set by the ACS. While high-quality, they may not suffice for the tightest semiconductor processes, especially at advanced technology nodes. However, many steps do rely on ACS-grade acids or solvents, especially in less contamination-sensitive applications or earlier process steps.

6.2 Electronic Grade & Semiconductor Grade

These designations imply far stricter limits on metallic impurities, particulate matter, and total organic carbon (TOC). Electronic-grade chemicals are typically used in mainstream semiconductor processes (e.g., nodes at 65 nm to 200 nm) and can be suitable for many cleaning, etching, and doping steps. They often highlight parts-per-million (ppm) or parts-per-billion (ppb) specs for key contaminants like iron, copper, sodium, and chlorides.

6.3 VLSI Grade & ULSI Grade

VLSI stands for “Very-Large-Scale Integration,” while ULSI stands for “Ultra-Large-Scale Integration.” These terms historically referenced integrated circuits with thousands (VLSI) or millions (ULSI) of transistors. Today, modern microprocessors can have billions of transistors, so “ULSI Grade” chemicals are generally considered among the highest purity levels. Impurity thresholds can be in parts-per-trillion (ppt) for certain metals, ensuring minimal risk for advanced nodes (<28 nm and beyond).

6.4 Low Particle & Low Metal Grades

Some chemicals are specifically labeled as “low metal” or “low particle.” In such solutions, rigorous filtration, distillation, or re-distillation processes remove submicron particulates and metal ions. For instance, Low-Particle ACS-Grade Nitric Acid is meticulously filtered to reduce potential wafer contamination, making it suitable for high-end semiconductor lines.

6.5 Verification & Batch Certification

Leading fabs typically demand a Certificate of Analysis (COA) for each chemical batch, detailing concentrations of metals, organics, and other potential contaminants. Random sampling, third-party verification, and real-time in-fab analytics help maintain consistency. Suppliers with robust quality management systems (e.g., ISO 9001, ISO 14001) demonstrate reliability in meeting these rigorous demands.

7. Ensuring a Reliable Chemical Supply Chain

In the fast-paced semiconductor world, consistent chemical supply is crucial. A single shortage or batch quality issue can delay wafer starts, bottleneck production, or cause yield dips. That’s why top fabs engage in robust supplier relationships and implement thorough oversight over the entire supply chain—from raw material sourcing to final packaging and logistics.

7.1 Dual Sourcing & Vendor Qualification

• Dual Sourcing: Many fabs maintain at least two approved suppliers for critical chemicals like sulfuric acid, nitric acid, or ammonia. This ensures continuity if one supplier faces a production setback.
• Vendor Audits: Periodic site visits, quality audits, and manufacturing process reviews keep suppliers accountable and confirm compliance with specifications.

7.2 Just-In-Time vs. Inventory Buffers

Some fabs adopt a just-in-time approach to chemical deliveries, reducing storage costs and potential material degradation over time. Others maintain safety stock—a strategic buffer of critical chemicals—in case of logistical disruptions (natural disasters, regulatory changes, or market volatility). Each approach has pros and cons, but reliability remains the top priority.

7.3 Packaging & Logistics

• Bulk Delivery: Large fabs may receive acids or bases in tankers, which then connect to on-site distribution systems. Safety and purity monitoring are paramount during transfers.
• Drum & Tote Options: Smaller manufacturing lines or R&D labs often rely on 55-gallon drums or totes for moderate volumes. High-purity containers with inert linings help preserve chemical quality.
• Specialty Containers: For extremely sensitive chemicals, stainless steel or Teflon-lined containers can be mandatory. Some require nitrogen purging to prevent contamination or oxidation.

7.4 Inventory Management & Shelf Life

Sulfuric acid, nitric acid, and ammonium hydroxide have finite shelf lives, especially for top-purity grades. Exposure to air, light, or temperature fluctuations can degrade chemical stability. Working closely with suppliers like Alliance Chemical ensures you get fresh, properly stored products—backed by robust supply chain practices and real-time tracking of batch expiry dates.

8. Safety & Handling of High-Purity Acids & Bases

Both acids (sulfuric, nitric) and bases (ammonium hydroxide) pose significant hazards to personnel and equipment if mishandled. High purity doesn’t reduce the chemical’s corrosivity—it simply means fewer impurities. Below are core guidelines:

8.1 Personal Protective Equipment (PPE)

• Eye & Face Protection: Chemical splash goggles, face shields
• Body Protection: Acid-resistant gloves, aprons, and suits
• Respiratory Protection: For ammonia or fuming acids, use appropriate respirators or ensure fume hoods are functioning properly

8.2 Storage Best Practices

• Segregation: Keep acids and bases separate to prevent exothermic reactions if containers leak
• Temperature Control: Store chemicals at recommended temperatures; nitric acid may need cool, well-ventilated areas
• Secondary Containment: Bunds or spill trays to contain leaks

8.3 Safe Transfer & Dispensing

• Closed Systems: Automated pumping or metering systems minimize human exposure
• Slow Addition: When mixing solutions (e.g., piranha solution), always add acid to water slowly to avoid violent reactions
• Ventilation: Use ventilated enclosures or fume hoods to manage corrosive fumes

8.4 Emergency Procedures

• Spill Kits & Neutralizers: Keep bases like sodium bicarbonate on hand for acid spills; or mild acid solutions for ammonia spills
• Eyewash Stations & Safety Showers: Must be accessible within seconds in case of accidental splashes
• Fire Hazards: While pure acids are generally non-flammable, exothermic reactions or interactions with oxidizable materials can cause fire or explosions

9. Environmental Impact & Sustainability in Semiconductor Chemical Use

The drive for greener operations isn’t limited to consumer-facing industries. Semiconductor fabs must manage potentially hazardous chemical waste, reduce water consumption, and minimize energy usage for both financial and ethical reasons. Key environmental considerations:

9.1 Effluent Treatment & Waste Management

• Acid Neutralization: Strong acids (sulfuric, nitric) require neutralization, typically with bases like sodium hydroxide or ammonia before discharge.
• Heavy Metal Removal: Some processes produce metal-laden wastewater. Specialized chemical treatments, precipitation, and filtration can remove these metals, preventing environmental contamination.
• Solvent Recovery: Distillation or reclamation of used solvents (like isopropyl alcohol) can reduce disposal volumes and costs.

9.2 Water Conservation

Fabs consume enormous amounts of ultrapure water (UPW). Recycling or reusing wastewater after appropriate treatment can significantly reduce the environmental footprint. Certain acid or base rinse steps can also be optimized to use fewer cycles, thereby cutting water use.

9.3 Lower Chemical Consumption

Process engineers continually refine recipes to maintain performance with fewer chemicals. Adjusting pH, temperature, or solution concentration can reduce chemical usage while still delivering adequate cleaning/etching power. Some advanced equipment designs recirculate solutions with inline filtration, further lowering consumption.

9.4 Regulatory Compliance

• Global Standards: Semiconductor companies often comply with regulations from the U.S. EPA, EU REACH, local water boards, etc.
• Voluntary Programs: Many fabs engage in ISO 14001 environmental management systems or Responsible Care programs to go beyond basic compliance.

10. Future Trends: Advanced Nodes & New Chemical Challenges

As the semiconductor industry marches toward advanced nodes (<5 nm, 3 nm, and beyond), the challenges around chemical purity and process complexity intensify. Below are some emerging trends that shape the trajectory of chemical usage in electronics manufacturing:

10.1 EUV Lithography & Photoresist Chemistry

Extreme Ultraviolet (EUV) lithography is essential for printing extremely small features. This shift demands new photoresist chemistries that respond effectively to EUV light while resisting pattern collapse. Traditional acid/base developers may need modifications to handle ultrathin resist layers. High-purity blends will remain crucial to maintain stable imaging performance.

10.2 3D Structures & TSVs

3D packaging and Through-Silicon Vias (TSVs) allow for vertically stacked chips, enabling higher density and performance. Etchants for deep silicon trenches—like anisotropic KOH or TMAH solutions—need advanced formulations to ensure consistent sidewalls. Meanwhile, post-etch residue cleaning intensifies the need for specialized acid mixtures (e.g., nitric, sulfuric) or proprietary solutions to remove byproducts from these deep channels.

10.3 New Materials & Metals

Beyond silicon, advanced fabs experiment with wide-bandgap semiconductors (GaN, SiC) for power electronics, or novel channel materials (Ge, III-V compounds) for transistor gates. Each material may require unique etchants and cleaning agents. Sulfuric, nitric, and ammonium hydroxide remain relevant, but custom doping and passivation steps might introduce exotic acid or base mixtures with even tighter purity specs.

10.4 Sustainable & Green Processes

The impetus for greener solutions continues to grow. Fabs are evaluating alternative chemistries with lower toxicity or reduced effluent generation. Examples include using less hazardous surfactants, biodegradable solvents, or advanced plasma processes that reduce wet chemical usage. Even so, staple chemicals like sulfuric, nitric, and ammonia remain foundational, with improvements focusing on recycling and environmental management.

10.5 Process Analytics & Real-Time Monitoring

Modern semiconductor lines increasingly adopt automated sensing and AI-driven process control. Inline chemical analysis and metrology can detect minute shifts in acid concentration or contamination, prompting immediate corrective actions (e.g., adjusting feed rates, discarding suspect batches). This real-time approach minimizes downtime and yield loss while strengthening the role of consistent chemical supply partners.

11. Why Choose Alliance Chemical for Semiconductor-Grade Products

At Alliance Chemical, we recognize the uncompromising demands of the semiconductor industry. Every drop of acid or base must pass the strictest quality thresholds to ensure your fab’s success. Here’s why leading manufacturers turn to us for wafer-level materials:

11.1 Diverse Product Portfolio

• Sulfuric Acid, Nitric Acid & Ammonium Hydroxide: Available in multiple purity grades (ACS, Electronic, Low Metal, etc.) to suit every node requirement.
• Additional Acids & Bases: We carry Sulfuric, Nitric Acid, Hydrochloric, Ammonia Products, and more. Explore our entire Acids Collection and Bases & Caustics portfolio for comprehensive solutions.
• Solvents, Surfactants & Specialty Chemicals: From alcohols to glycols and chlorinated solvents, we offer a vast selection to address every wet process need.

11.2 Quality Assurance & Technical Support

• Stringent Testing: We maintain rigorous in-house QC labs, verifying purity parameters (metal content, particulates, etc.) for each lot.
• Certificates of Analysis: COAs are readily available, offering full transparency on each batch.
• Expert Guidance: Our technical team can advise on the best chemical grades and handling strategies to match your specific node or product line needs.

11.3 Flexible Packaging & Logistics

• Safe Transport: Our specialized carriers and hazard-compliant packaging ensure your chemicals arrive intact and meet all regulatory mandates.
• Scalable Volumes: From small R&D volumes to bulk deliveries, we adapt to your production scale.
• Timely Deliveries: With multiple stocking locations and robust supply chain management, you can count on uninterrupted supply.

11.4 Sustainability Commitment

Alliance Chemical is committed to reducing environmental impact through optimized production methods, waste minimization, and eco-friendly packaging solutions. We share your vision for sustainable semiconductor manufacturing, offering advice on recycling, reusing, and disposing of chemicals responsibly.

12. FAQs

1. Can I use standard industrial-grade acids for semiconductor processes?
   Answer: Typically, no. Semiconductor fabrication requires ultra-clean conditions. Industrial-grade acids often contain unacceptable levels of metal ions and particulates, which can lead to device-killing defects.
2. What is the difference between ACS Grade and Electronic Grade chemicals?
   Answer: ACS Grade meets standards set by the American Chemical Society, suitable for many lab and industrial uses. Electronic Grade imposes stricter limits on metallic and particulate impurities, aligning with semiconductor manufacturing demands.
3. Why is ammonium hydroxide so crucial in wafer cleaning?
   Answer: Ammonium hydroxide’s alkaline properties help remove organic residues, particles, and certain metallic contaminants, especially when used in “SC1” solutions with hydrogen peroxide. This ensures pristine wafer surfaces for subsequent lithography or deposition steps.
4. How should I store large quantities of sulfuric or nitric acid for a fab?
   Answer: Store them in a dedicated, temperature-controlled area with secondary containment to catch spills. Proper ventilation is critical, especially for fuming nitric acid. Specialized stainless steel or acid-resistant plastic containers/tanks are typically used.
5. What if I need a custom acid blend for a unique etch or cleaning process?
   Answer: Alliance Chemical can often accommodate custom formulations or advise on mixing protocols. Please provide your purity specs and process details, and we’ll work with you to create a solution that meets your needs.
6. How do I minimize acid usage and reduce costs without compromising yields?
   Answer: Techniques like recirculation, inline filtration, improved rinse strategies, and real-time process monitoring can reduce acid consumption. Consult with chemical and equipment suppliers to optimize usage while maintaining (or improving) yield.
7. Are there greener alternatives to sulfuric or nitric acid in cleaning?
   Answer: Some fabs explore ozone-based or plasma-based cleans, but these rarely replace acids entirely. Hybrid approaches might reduce acid usage. However, for many advanced nodes, standard acid chemistries remain essential for consistent results.
8. Is contamination control only about chemicals?
   Answer: No. Air filtration (HEPA/ULPA filters), particulate control, wafer handling protocols, and even staff training all play major roles in contamination prevention. Chemicals, however, are a major source of potential impurities if not managed properly.
9. Does Alliance Chemical ship internationally?
   Answer: Yes, we serve clients worldwide, subject to local regulations and import/export guidelines. Please contact us for details on international shipping terms, fees, and lead times.
10. What safety certifications do Alliance Chemical products carry?
    Answer: Our facility and products adhere to relevant hazard communication standards (OSHA, GHS) and ISO-based quality systems. SDSs (Safety Data Sheets) accompany every shipment, and specialized chemical compliance (like REACH in the EU) can be addressed upon request.

13. Conclusion

The world’s most advanced semiconductor devices hinge on incredibly subtle manipulations of matter—down to the atomic scale. Achieving the yield, performance, and reliability demanded by modern electronics requires near-pristine manufacturing environments and the highest-grade chemicals. Core substances like sulfuric acid, nitric acid, and ammonium hydroxide underpin numerous cleaning, etching, and doping stages, ensuring wafers remain defect-free at every step of their transformation into integrated circuits.

Yet, chemical purity is only one piece of the puzzle. Maintaining robust safety practices, adopting sustainable waste management, and embracing new technologies like EUV or advanced 3D architectures all factor into building a successful, future-ready semiconductor line. By understanding the intricacies of these processes and forging partnerships with reliable chemical suppliers, fabs can confidently navigate the relentless push toward smaller nodes and higher transistor densities.

Whether you’re scaling production at a multi-billion-dollar fab or refining R&D processes in a university cleanroom, remember: your chemical choices matter. The difference between a stable high-yield line and persistent yield losses can boil down to part-per-billion impurities. When the stakes are this high, compromise is not an option.

14. References & Resources

• International Technology Roadmap for Semiconductors (ITRS). “Executive Summary for Process Integration, Devices, & Structures.”
• Semiconductor Equipment and Materials International (SEMI). “Guidelines for Chemical Management and Purity in Microelectronics Manufacturing.”
• Alliance Chemical Product Pages:
  • Sulfuric Acid Collection
  • Nitric Acid Collection
  • Ammonia Products
  • Acids Collection
  • Bases & Caustics
  • Solvents
  • Lab Chemicals
  • Industrial Chemicals
  • Equipment & Containers
• NIST (National Institute of Standards and Technology). “Measurement & Standards for Semiconductor Grade Chemicals.”
• Cleanrooms International. “Cleanroom Contamination Control Guidelines.”
• IBM Journal of Research & Development. “Advanced Node Lithography & Chemical Interactions.”
• IEEE Xplore. “Material Challenges and Solutions in Sub-5nm Device Fabrication.”
• Alliance Chemical. Contact Us for specialized consulting and product inquiries.

Disclaimer: This blog is for general informational purposes. Always consult official guidelines (e.g., SDS, local regulations) and professional engineers when handling hazardous chemicals in semiconductor manufacturing. The references above reflect accurate information as of publication but may change over time.
