Unveiling Ferric Chloride: From Ancient Alchemy to Modern Industry

In the vast realm of industrial chemistry, ferric chloride stands out as a compound of remarkable versatility and historical significance. Also known as iron(III) chloride, this substance has journeyed from the laboratories of medieval alchemists to the forefront of today's technological advancements. Whether it's crafting intricate circuits on printed circuit boards (PCBs) or purifying our drinking water, ferric chloride plays a pivotal role. In this comprehensive and engaging guide, we'll delve deep into the history, properties, and multifaceted uses of ferric chloride, peppered with fascinating tidbits that bring chemistry to life.

1. The Origins of Ferric Chloride

From Alchemy to Chemistry

The story of ferric chloride begins in the annals of ancient alchemy. Early alchemists were fascinated by iron compounds, believing they held the key to transforming base metals into gold. While their quest for the Philosopher's Stone didn't pan out, they inadvertently discovered numerous iron compounds, including forms of iron chloride.

Fast forward to the 19th century, ferric chloride found its place in the burgeoning field of photography. It was used in processes like the collodion method, contributing to the development of early photographic techniques.

A Chemical of Many Names

Ferric chloride is sometimes referred to as iron trichloride or molysite in its mineral form. The term "ferric" comes from the Latin word ferrum, meaning iron, and indicates that the iron is in the +3 oxidation state.

"Did you know? The mineral form of ferric chloride, molysite, is extremely rare and is found in fumaroles—a type of volcanic vent."

2. Chemical Properties and Characteristics

Physical Properties

• Appearance: Dark brown to black crystalline solid in anhydrous form; yellow-orange when in solution.
• Molecular Weight: 162.20 g/mol.
• Odor: Slightly pungent, similar to hydrochloric acid due to hydrolysis.
• Density: 2.90 g/cm³ (anhydrous); varies in solution.
• Solubility: Highly soluble in water, ethanol, and acetone.

Chemical Properties

• Hydrolysis: In water, ferric chloride hydrolyzes to form hydrochloric acid (HCl) and ferric hydroxide [Fe(OH)₃], causing the solution to be acidic.
• Acidic Nature: Solutions of ferric chloride have a low pH, typically around 2.
• Reactivity: Reacts with metals, bases, and oxidizing agents.
• Oxidizing Agent: Can act as a mild oxidizer in chemical reactions.

"Ferric chloride's ability to hydrolyze and release HCl makes it a strong Lewis acid, which is crucial in many of its applications."

3. Ferric Chloride in PCB Etching

The Backbone of Electronics

Printed circuit boards are the foundation of all electronic devices, from smartphones to spacecraft. The precise etching of copper layers on these boards allows for complex circuits to be created in compact spaces.

How Ferric Chloride Etching Works

1. Designing the Circuit: A circuit diagram is translated into a physical layout using software.
2. Applying the Resist: A photosensitive resist is applied to the copper-clad board. The board is then exposed to UV light through a mask of the circuit pattern.
3. Developing the Board: The exposed areas of the resist are removed, revealing the copper beneath.
4. Etching Process: The board is submerged in a ferric chloride solution. The ferric chloride reacts with the exposed copper, dissolving it and leaving behind the protected areas, which form the circuit paths.
5. Cleaning and Finishing: The remaining resist is removed, and the board is cleaned, drilled, and prepared for component placement.

Chemistry Behind the Etching

The etching reaction involves the oxidation of copper metal to copper(II) ions:

FeCl₃ + Cu → FeCl₂ + CuCl

The ferric chloride (FeCl₃) oxidizes the copper (Cu) to form ferrous chloride (FeCl₂) and copper(I) chloride (CuCl). The reaction continues with the copper(I) chloride dissolving in the solution, effectively removing the copper from the board.

Advantages of Using Ferric Chloride

• Precision: Allows for fine details and high-resolution etching.
• Reusability: The etching solution can be regenerated or reused to some extent.
• Accessibility: Readily available to both industrial users and hobbyists.
• Cost-Effective: Offers a balance between performance and cost.

Safety and Best Practices

• Ventilation: Perform etching in a well-ventilated area to avoid inhaling fumes.
• Temperature Control: Warmer solutions etch faster but increase evaporation and fumes.
• Agitation: Gently moving the solution or the board can improve etching uniformity.
• Protective Equipment: Wear gloves, goggles, and protective clothing.

"Fun Fact: Some DIY enthusiasts use alternative methods like 'toner transfer' and household chemicals, but ferric chloride remains the gold standard for precision and reliability."

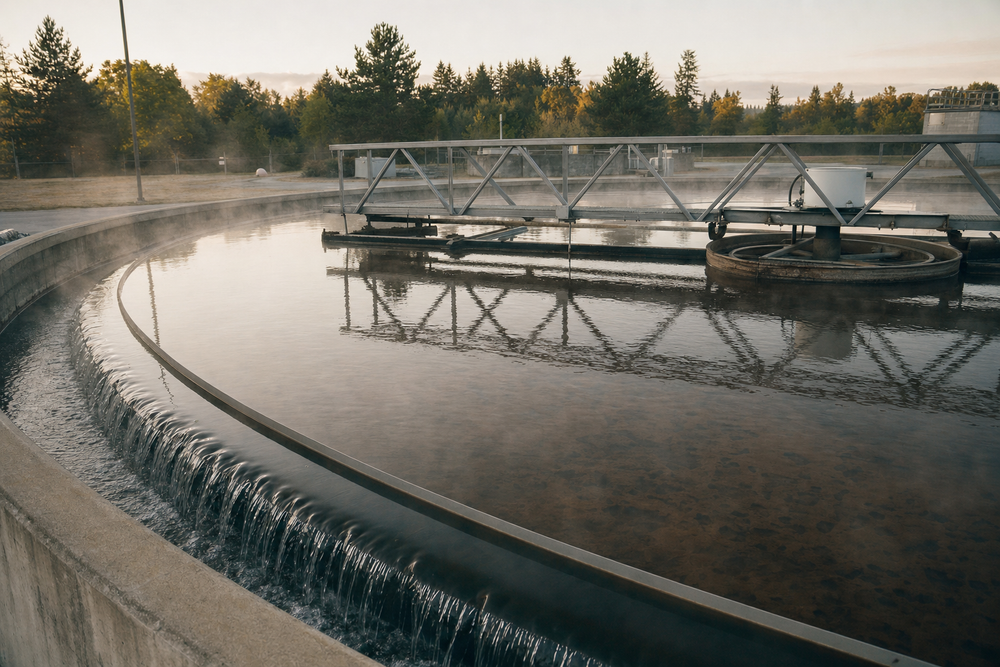

4. Ferric Chloride in Water Treatment

Ensuring Clean Water for All

Water is essential for life, and treating water to make it safe for consumption is a critical public health task. Ferric chloride plays a significant role in this process, especially in coagulation and flocculation stages.

Mechanism of Action

• Charge Neutralization: Many impurities in water are colloidal particles with negative charges. Ferric chloride introduces positively charged iron(III) ions that neutralize these charges.
• Formation of Flocs: Neutralized particles aggregate to form larger particles called flocs.
• Sedimentation: Flocs are heavy and settle at the bottom, allowing for easy removal.

Benefits in Water Treatment

• Versatility: Effective over a wide pH range and in various water conditions.
• Phosphate Removal: Binds with phosphates, reducing nutrient loads that can cause algae blooms.
• Odor Control: Reduces hydrogen sulfide levels, minimizing foul odors.
• Sludge Conditioning: Improves dewatering characteristics of sludge.

Comparison with Other Coagulants

"Did you know? Excess nutrients like phosphates in water bodies can lead to eutrophication, causing dead zones where aquatic life cannot survive."

5. Other Industrial Applications

Metallurgical Processes

Ferric chloride is utilized in metallurgy for various purposes:

• Metal Surface Treatment: Cleans and etches metal surfaces before plating or coating.
• Pickling Agent: Removes rust and scale from iron and steel.

Dye and Pigment Production

In the textile industry, ferric chloride acts as a mordant—a substance that fixes dyes onto fabrics, enhancing colorfastness and vibrancy.

Catalyst in Organic Synthesis

Chemists use ferric chloride as a catalyst in organic reactions such as chlorination and aromatic substitution due to its Lewis acid properties.

Photography and Art

Beyond its historical use, ferric chloride is employed in modern art forms:

• Etching Plates: Used by artists to etch designs onto metal plates for printmaking.
• Cyanotype Process: Contributes to the development of blueprints and photographic prints.

Biomedical Applications

In research, ferric chloride is used to induce thrombosis in animal models, helping scientists study blood clotting mechanisms.

"Fun Fact: Ferric chloride's ability to form iron complexes is exploited in tests for phenols in laboratory settings, turning solutions violet—a colorful indication of chemical presence."

6. Handling and Safety Guidelines

Understanding Risks

Ferric chloride is corrosive and poses risks if not handled properly. Awareness and adherence to safety protocols are paramount.

Personal Protective Equipment (PPE)

• Gloves: Use chemical-resistant gloves like nitrile or neoprene.
• Eye Protection: Safety goggles with side shields or face shields.
• Clothing: Long sleeves, lab coats, and closed-toe shoes.
• Respiratory Protection: Use masks or respirators if aerosols or fumes are present.

Safe Storage Practices

• Container Material: Store in plastic or rubber-lined containers; avoid metals.
• Temperature: Keep in a cool, dry place away from heat sources.
• Segregation: Store away from incompatible substances like bases and oxidizers.
• Labeling: Clearly label containers with hazard warnings.

First-Aid Measures

• Skin Contact: Remove contaminated clothing and rinse skin with water for at least 15 minutes.
• Eye Contact: Flush eyes with water for at least 15 minutes; seek medical attention immediately.
• Inhalation: Move to fresh air; if symptoms persist, consult a physician.
• Ingestion: Do not induce vomiting; rinse mouth and seek medical help.

Spill and Leak Procedures

• Containment: Use absorbent materials like sand or vermiculite.
• Neutralization: Neutralize with lime or sodium bicarbonate if appropriate.
• Disposal: Place waste in appropriate containers for disposal according to regulations.

"Safety Tip: Always have a spill kit accessible in areas where ferric chloride is used."

7. Environmental Impact and Disposal

Environmental Considerations

• Aquatic Toxicity: High concentrations can harm aquatic life due to acidity and iron overload.
• Soil Impact: Can alter soil pH, affecting plant growth and soil microorganisms.
• Bioaccumulation: Iron can accumulate in organisms but is generally regulated by biological systems.

Proper Disposal Methods

• Neutralization: Adjust pH with a base like sodium hydroxide before disposal.
• Regulatory Compliance: Follow local, state, and federal regulations for hazardous waste disposal.
• Professional Services: Use licensed waste disposal companies when necessary.

Recycling and Recovery

• Metal Recovery: Extracting iron content for reuse in industrial processes.
• Solution Regeneration: Some etching solutions can be regenerated to extend their lifespan.

"Environmental Tip: Minimizing waste not only protects the environment but can also reduce operational costs."

8. Fun Facts and Tidbits

Colorful Chemistry

Ferric chloride solutions can range in color from yellow to orange to brown, depending on concentration and impurities. This color variability is due to the formation of different iron complexes in solution.

Medical Uses in History

In the 1800s, ferric chloride was used medicinally to treat anemia and as an astringent to stop bleeding. However, its use declined due to side effects and the development of safer treatments.

Ferric Chloride and Forensics

Ferric chloride can react with phenolic compounds, producing a color change. This reaction is utilized in forensic science to detect certain drugs or poisons.

Role in Steel Production

Ferric chloride is involved in the pickling process of stainless steel, helping to remove scale and prepare the metal for further processing.

Artistic Applications

Artists use ferric chloride to create etchings on metal plates, allowing for the reproduction of detailed images. The process requires skill and timing to achieve the desired depth and effect.

"Did you know? The famous artist Rembrandt was known for his etchings, a technique that still employs chemicals like ferric chloride today."

9. Frequently Asked Questions

Is ferric chloride hazardous to handle?

Yes, ferric chloride is corrosive and can cause burns upon contact with skin or eyes. It should be handled with appropriate protective equipment and care.

Can ferric chloride be used for etching metals other than copper?

While it's most effective on copper, ferric chloride can etch other metals like stainless steel and brass, though the reaction rates and results may vary.

How should I dispose of used ferric chloride etching solution?

Neutralize the solution and follow local regulations for hazardous waste disposal. Do not pour it down the drain without proper treatment.

Is ferric chloride environmentally friendly?

Ferric chloride can have environmental impacts if not managed properly. However, when used responsibly and disposed of correctly, it can be part of environmentally sound processes.

Where can I buy high-quality ferric chloride?

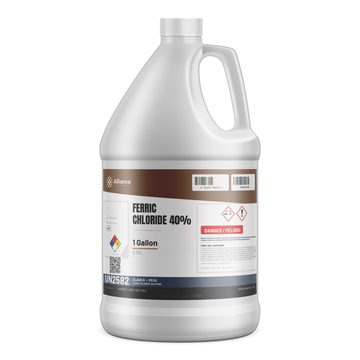

You can purchase high-grade Ferric Chloride 40% from Alliance Chemical, a reputable supplier of industrial chemicals.

10. Conclusion

Ferric chloride is more than just a chemical compound; it's a cornerstone of modern industry with roots that trace back to ancient practices. From enabling the miniaturization of electronics through PCB etching to safeguarding public health via water treatment, its applications are vast and varied. Understanding the properties, uses, and handling of ferric chloride not only enhances its effective application but also ensures safety and environmental stewardship.

At Alliance Chemical, we're dedicated to providing top-quality ferric chloride and other essential chemicals, backed by expertise and customer support. Whether you're an industrial user, a researcher, or a hobbyist, we're here to meet your chemical needs with professionalism and reliability.

Explore our product offerings and learn more about how we can assist you by visiting our Ferric Chloride 40% page or contacting our team directly.

"Chemistry is not just about reactions and equations; it's about understanding the world around us and harnessing its potential for innovation and improvement."
